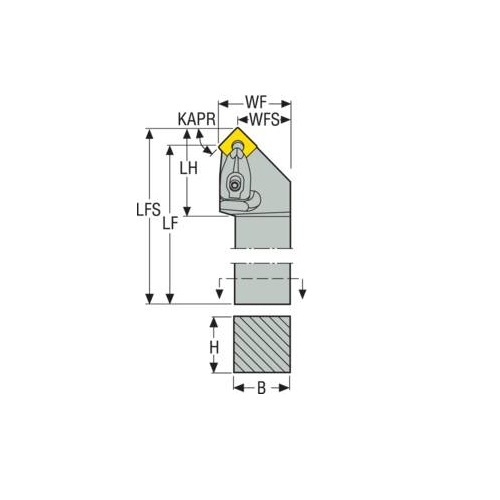

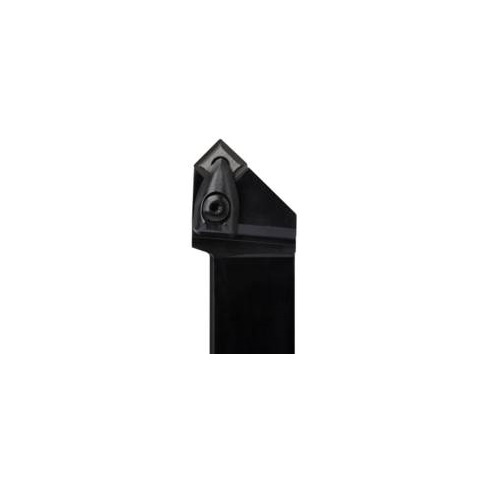

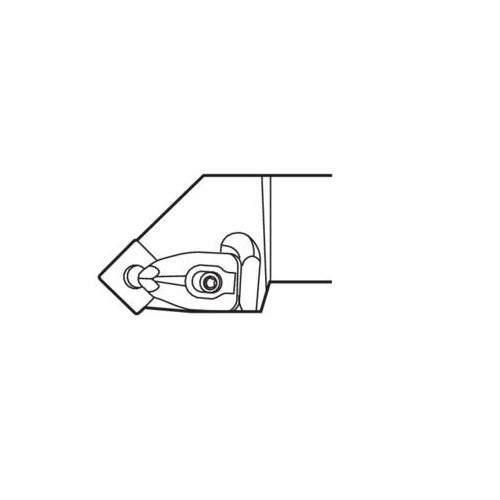

Seco Turning External Toolholder Top Clamp Right 45° S Insert Shape DSSNR1616H09-M

Turning External Toolholder (Top Clamp - S Type - S Insert Shape - M Surface)

  • Top clamp using the center hole.
  • S insert shape.
  • S tool type, offset shank with 45° side cutting edge angle.
  • M surface, qualified front, and end. 4” long.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0114988
  • Brand Seco
  • Model Number 02588167
  • Barcode Number 88167025000106
  • Net Weight (kg) 0.216
  • Designation DSSNR1616H09-M
  • Cutting Edge Length (mm) 9
  • Tool Type S Type
  • Tool Cutting Edge Angle (KAPR) 45.0 deg
  • Direction Of Cutting (hand) Right
  • Head Length (LH) 32mm
  • Inclination Angle (LAMS) 0.0 deg
  • Functional Length (LF) 101mm
  • Connection Text Workpiece Side (ctws) SN0903
  • Connection Text Machine Side (CTMS) 1616
  • Functional Width (WF) mm 20
  • Tool Cutting Edge Angle Code (KAPRC) S
  • Height Of Tool Holder Shank (H) mm 16
  • Shank Width (b) mm 16
  • Rake Angle Orthogonal (gamo) -8.0 deg
  • Insert Shape Code (SC) S
  • Type Turning Toolholder
  • Insert Clamping System (ICS) Top Clamp
  • Version (internal/external/both) External
  • Shank Type Square shank
SKU: A0114988

Seco Turning External Toolholder Top Clamp 101 x 20 x 9mm Right 45° S Insert Shape DSSNR1616H09-M

Top Clamp - S Type - S Insert Shape - M Surface

$134.64
RRP $168.30
SAVE $33.66 (20%)
