Specifications
- AIMS SKU A0114941
- Brand Seco
- Model Number 02880410
- Barcode Number 80410028000108
- Net Weight (kg) 0.72
- Designation DDQNR-16-3D

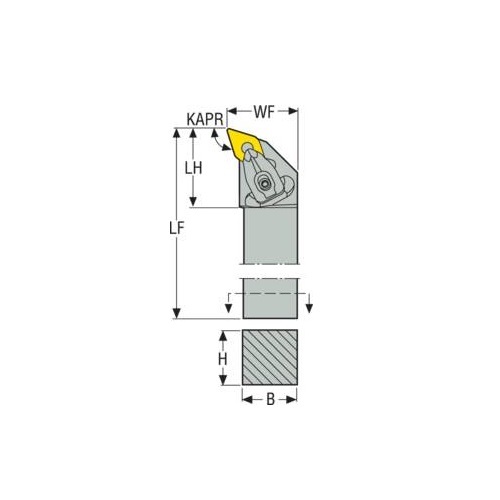

- Functional Length (LF) 152.4mm
- Tool Cutting Edge Angle (KAPR) 107.5 deg
- Shank Width (b) mm 25.4
- Rake Angle Axial (gamp) -6.0 deg
- Insert Shape Code (SC) D
- Functional Width (WF) mm 31.8
- Tool Cutting Edge Angle Code (KAPRC) H
- Insert Seat Size Code (SSC) 1506
- Functional Height (HF) mm 25.4
- Direction Of Cutting (hand) Right
- Rake Angle Orthogonal (gamo) -6.0 deg
- Insert Size Inscribed Circle Diameter (mm) 3
- Cutting Edge Length (mm) 3
- Tool Type Q Type
- Height Of Tool Holder Shank (H) mm 25.4
- Connection Text Workpiece Side (ctws) DN1104
- Connection Text Machine Side (CTMS) 25.4
- Rake Angle Radial (gamf) -6.0 deg
- Ramping Angle Maximum (RPMX) 17.0 deg
- Inclination Angle (LAMS) -6.0 deg
- Type Turning Toolholder

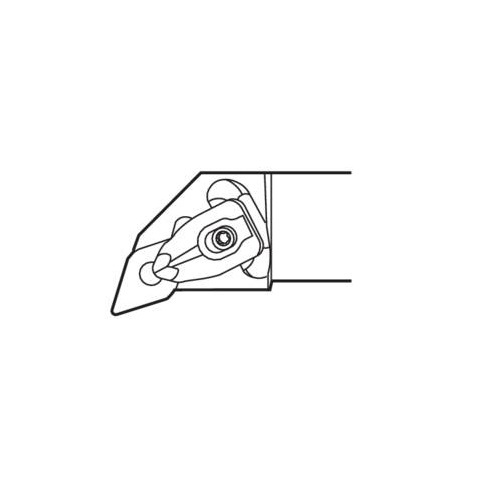

- Insert Clamping System (ICS) Top Clamp
- Version (internal/external/both) External
- Shank Type Square shank
SKU: A0114941

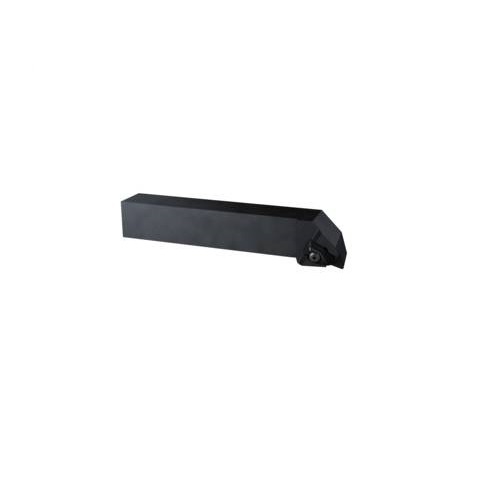

Seco Turning External Toolholder Top Clamp 152.4 x 31.8 x 3mm Right 107.5° D Insert Shape DDQNR-16-3D
Top Clamp - Q Type - D Insert Shape
$158.40
SAVE $39.60 (20%)
