Specifications
- AIMS SKU A0115003
- Brand Seco
- Model Number 02880414
- Barcode Number 80414028000106
- Net Weight (kg) 0.762
- Designation DTFNR-16-3D

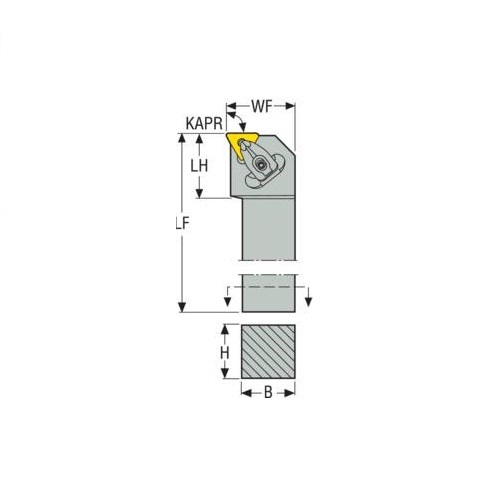

- Inclination Angle (LAMS) -6.0 deg
- Functional Length (LF) 152.4mm
- Functional Height (HF) mm 19.1
- Direction Of Cutting (hand) Right
- Functional Width (WF) mm 31.8
- Tool Cutting Edge Angle Code (KAPRC) F
- Height Of Tool Holder Shank (H) mm 25.4
- Connection Text Workpiece Side (ctws) TN1604
- Connection Text Machine Side (CTMS) 25.4
- Insert Shape Code (SC) T
- Cutting Edge Length (mm) 3
- Tool Type F Type
- Tool Cutting Edge Angle (KAPR) 90.0 deg
- Shank Width (b) mm 25.4
- Rake Angle Orthogonal (gamo) -6.0 deg
- Insert Size Inscribed Circle Diameter (mm) 3
- Type Turning Toolholder
- Insert Clamping System (ICS) Top Clamp
- Version (internal/external/both) External
- Shank Type Square shank
SKU: A0115003

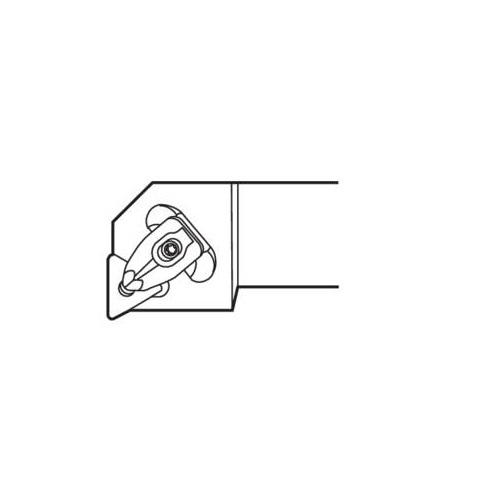

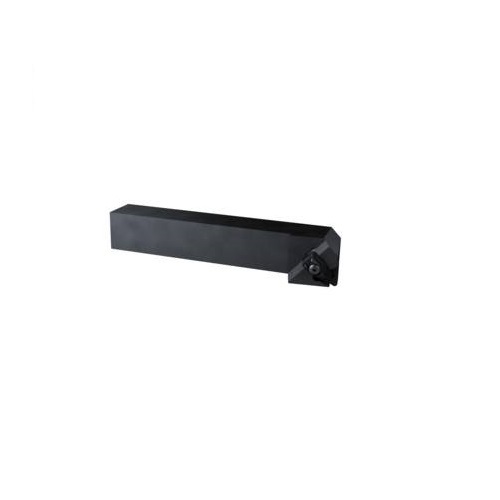

Seco Turning External Toolholder Top Clamp 152.4 x 25.4 x 3mm Right 90° T Insert Shape DTFNR-16-3D
Top Clamp - F Type - T Insert Shape
$158.40
SAVE $39.60 (20%)
