Description

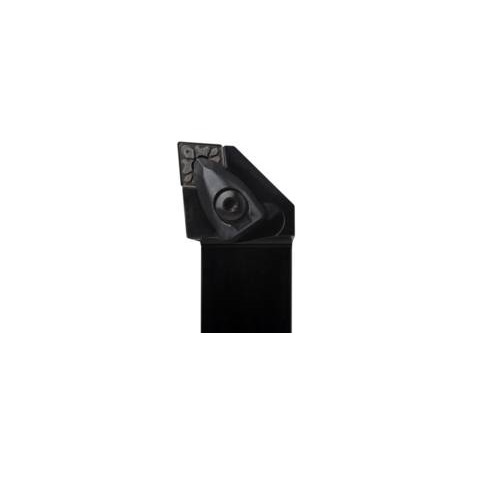

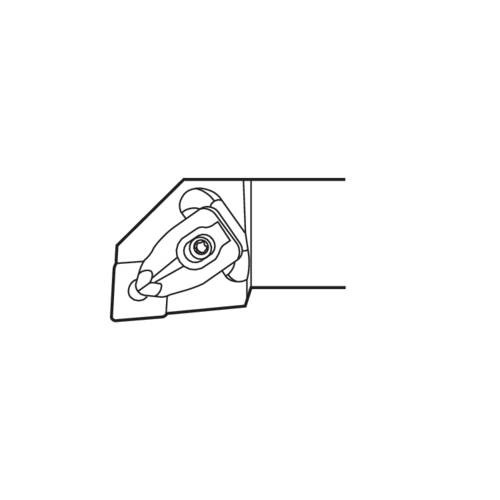

Seco Turning External Toolholder Top Clamp Left 95° C Insert Shape DCLNL-12-4B

Turning External Toolholder (Top Clamp - L Type - C Insert Shape)

  • Top clamp using the center hole.
  • C insert shape.
  • L tool type, offset shank with –5° end or side cutting edge.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0114854
  • Brand Seco
  • Model Number 02565455
  • Barcode Number 65455025000103
  • Net Weight (kg) 0.38
  • Designation DCLNL-12-4B
  • Tool Cutting Edge Angle Code (KAPRC) L
  • Shank Length (LS) mm 81.3
  • Connection Text Workpiece Side (ctws) CN1204
  • Connection Text Machine Side (CTMS) 19.05
  • Insert Shape Code (SC) C
  • Cutting Edge Length (mm) 4
  • Tool Type L Type
  • Height Of Tool Holder Shank (H) mm 19.1
  • Shank Width (b) mm 19.1
  • Rake Angle Axial (gamp) -6.0 deg
  • Insert Size Inscribed Circle Diameter (mm) 4
  • Inclination Angle (LAMS) -6.0 deg
  • Functional Length (LF) 114.3mm
  • Tool Cutting Edge Angle (KAPR) 95.0 deg
  • Direction Of Cutting (hand) Left
  • Rake Angle Orthogonal (gamo) -6.0 deg
  • Functional Width (WF) mm 25.4
  • Type Turning Toolholder
  • Insert Clamping System (ICS) Top Clamp
  • Version (internal/external/both) External
  • Shank Type Square shank
SKU: A0114854

Seco Turning External Toolholder Top Clamp 114.3 x 25.4 x 4mm Left 95° C Insert Shape DCLNL-12-4B

Top Clamp - L Type - C Insert Shape

$151.36
RRP $189.20
SAVE $37.84 (20%)
