Description

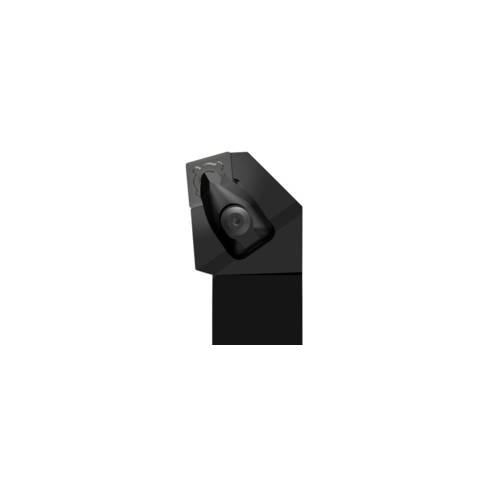

Seco Turning External Toolholder Top Clamp Left 75° C Insert Shape DCKNL2020K12-M

Turning External Toolholder (Top Clamp - K Type - C Insert Shape - M Surface)

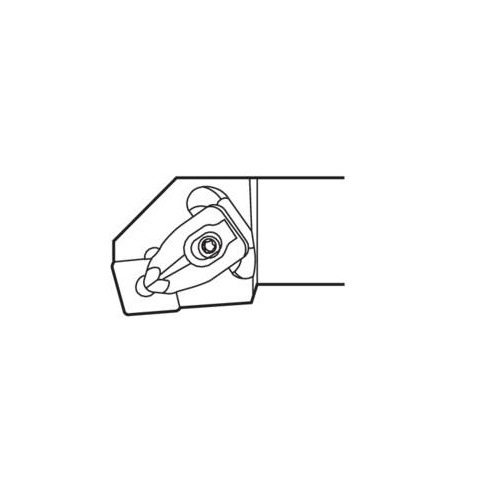

Top clamp using the center hole.
C insert shape.
K tool type, offset with a 15° end cutting edge angle.
M surface, qualified front, and end. 4” long.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114842

Brand Seco

Model Number 02588113

Barcode Number 88113025000103

Net Weight (kg) 0.41

Designation DCKNL2020K12-M

Insert Seat Size Code (SSC) 1204

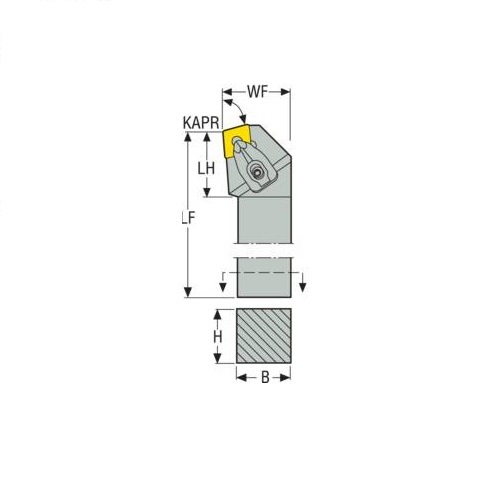

Tool Cutting Edge Angle (KAPR) 75.0 deg

Shank Width (b) mm 20

Rake Angle Axial (gamp) -6.0 deg

Cutting Diameter Internal Minimum 3 (mm) 350

Inclination Angle (LAMS) -6.0 deg

Tool Type K Type

Shank Length (LS) mm 95

Cutting Depth Maximum (cdx) mm 1

Direction Of Cutting (hand) Left

Rake Angle Orthogonal (gamo) -6.0 deg

Insert Shape Code (SC) C

Functional Width (WF) mm 25

Tool Cutting Edge Angle Code (KAPRC) K

Functional Length (LF) 125mm

Height Of Tool Holder Shank (H) mm 20

Connection Text Workpiece Side (ctws) CN1204

Connection Text Machine Side (CTMS) 2020

Rake Angle Radial (gamf) -6.0 deg

Head Length (LH) 30mm

Cutting Edge Length (mm) 12

Cutting Diameter Internal Minimum (DCINN) 250mm

Type Turning Toolholder
Insert Clamping System (ICS) Top Clamp
Version (internal/external/both) External
Shank Type Square shank
