Specifications

AIMS SKU A0114906
Brand Seco
Model Number 02569289
Barcode Number 69289025000100
Net Weight (kg) 0.78

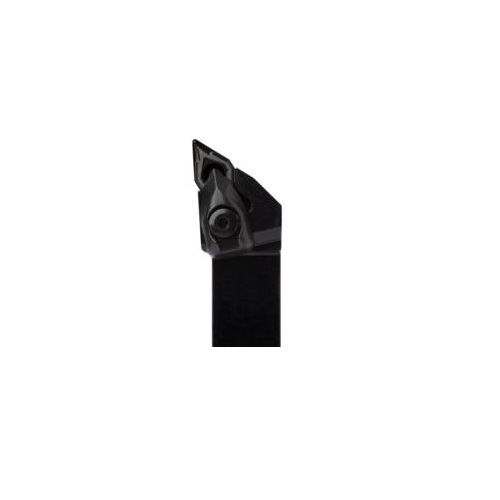

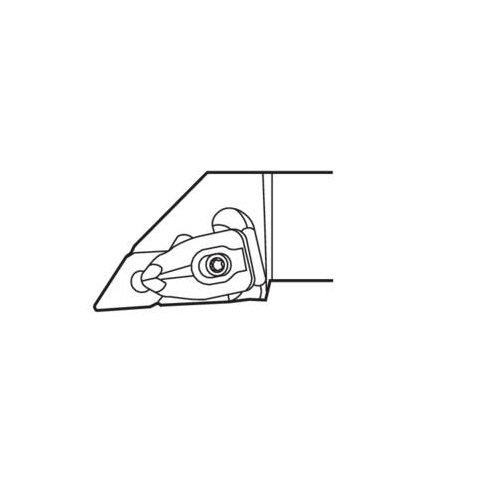

Designation DDJNL-16-4D-M
Shank Length (LS) mm 110.4
Functional Height (HF) mm 152.4
Shank Width (b) mm 25.4
Rake Angle Axial (gamp) -6.0 deg
Cutting Diameter Internal Minimum 3 (mm) 250
Functional Width (WF) mm 31.8
Tool Cutting Edge Angle Code (KAPRC) J
Functional Length (LF) 152.4mm
Height Of Tool Holder Shank (H) mm 25.4
Cutting Depth Maximum (cdx) mm 7.8
Direction Of Cutting (hand) Left
Rake Angle Orthogonal (gamo) -6.0 deg
Insert Shape Code (SC) D
Insert Size Inscribed Circle Diameter (mm) 4
Cutting Edge Length (mm) 4
Cutting Diameter Internal Minimum (DCINN) 250mm
Insert Seat Size Code (SSC) 1506
Tool Cutting Edge Angle (KAPR) 93.0 deg
Connection Text Workpiece Side (ctws) DN1504
Connection Text Machine Side (CTMS) 25.4
Rake Angle Radial (gamf) -6.0 deg
Head Length (LH) mm
Ramping Angle Maximum (RPMX) 30.0 deg
Inclination Angle (LAMS) -6.0 deg
Tool Type J Type
• Type Turning Toolholder
• Insert Clamping System (ICS) Top Clamp
• Version (internal/external/both) External
• Shank Type Square shank
