Description

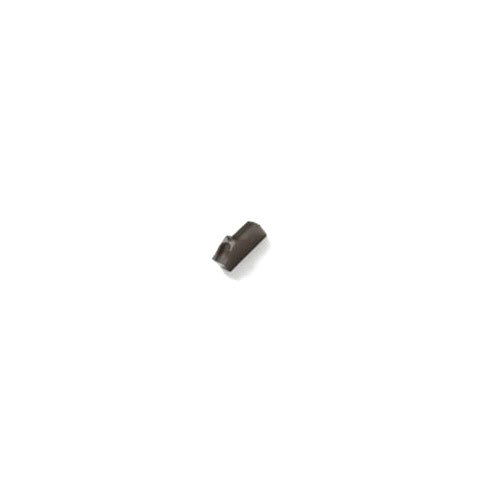

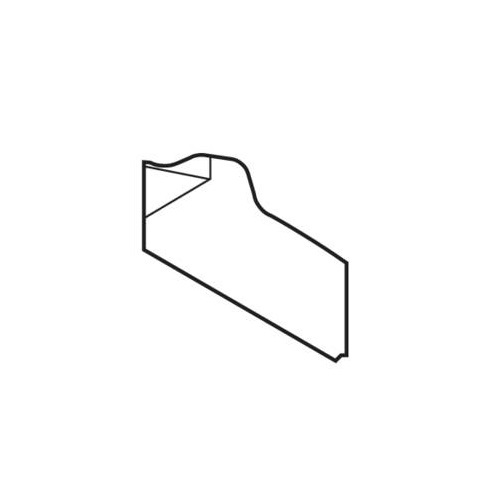

335.10 Disc Mill Parting Off Carbide Insert (MP1500/T350M/TGP45 - 14 Chipbreaker)

  • Inserts in neutral version N are first choice since they normally achieve increased tool life.
  • Inserts in neutral version N better chip control, high surface quality and allow higher cutting data compared to the handed (R-/L-) version.
  • Carbide CVD.

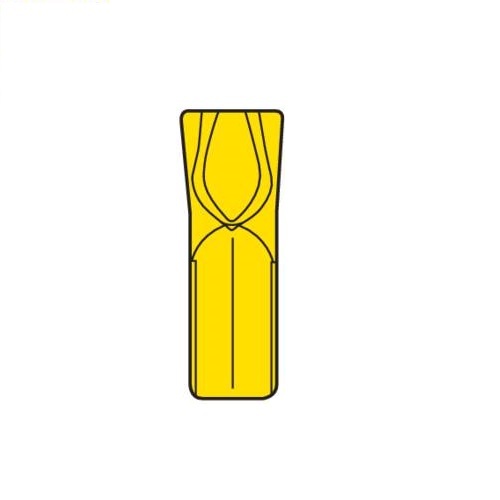

14 Chipbreaker

  • First choice for stainless steel.
  • First choice for steel at medium-high feed rates.
  • 15° positive cutting rake angle with sharp edge.

All About Disc Mill:

  • Our extensive range of standard disc milling cutters, insert radii, geometry and grades tackles any challenges brought by disc milling applications.
  • With the widest range of inserts, cutter bodies, and attachment types in the industry, we are your single source tooling supplier for sawing, T-slotting, slotting, deep slotting, dual-radius slotting, back facing, circular or helical interpolation, square shoulder milling, circlip grooving and copy milling.
  • And our products are developed with extensive research to ensure they meet the needs to today’s materials and machining processes.
  • While our full line of standard disc milling cutters covers most applications, we also offer special design and manufacturing solutions for industry-specific needs.
  • This includes cutters for gear machining in the power generation industry, automotive crankshaft milling, large diameters cutter solutions for many typical aerospace components, cutters for oil and gas pipe sawing and cutters with round inserts for hip prosthesis.

All about 335.10 - Width Of Cut 2.25-4.1mm:

  • For slim slotting and cut-off operations.
  • Self-clamping insert design.
  • Width of cut 2.25-4.1 mm (.088 - .161 inch)
  • Cutter range diameter 40-315 mm (1.5 - 12 inch).
  • Internal coolant.

Specifications

  • AIMS SKU A0113139
  • Brand Seco
  • Model Number 02447509
  • Barcode Number 47509024001006
  • Net Weight (kg) 0.001
  • Designation 150.10-2.25N-14 T350M
  • Insert Seat Size Code (SSC) 2

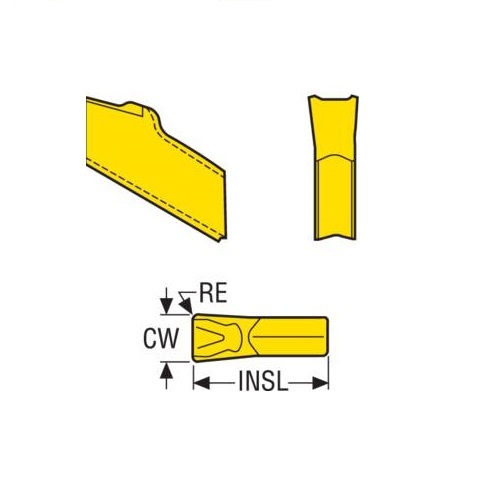

  • Cutting Edge Angle Major Left Hand (PSIRL) 0.0 deg
  • Corner Radius (RE) mm 0.15
  • Insert Length (INSL) mm 9
  • Cutting Edge Angle Major Right Hand (PSIRR) 0.0 deg
  • Cutting Width (mm) 2.25
  • Type Disc Mill Parting Off Insert
  • Grade Type Carbide CVD
SKU: A0113139

Seco 2.25mm T350M Disc Mill Parting Off Insert 14 Chipbreaker 150.10-2.25N-14,T350M - Pack of 10

335.10 Disc Mill Parting Off Carbide Insert

$248.82
