Square 6 Shoulder Arbor Milling Cutter (With Through Coolant Supply)

  • Square 6, 6-cutting edge double sided inserts.
  • Cutter range 40-315 mm (1.25-12 inch).
  • Max depth of cut 7 mm (0.276 inch).
  • Recommended slotting depth of cut 4 mm (0.157 inch).
  • Insert corner radii range 0.4-0.8 mm (0.016-0.031 inch).

All About Square 6 - 6-Cutting-Edge Double-Sided Inserts:

  • Seco’s line of square 6 shoulder milling cutters answers the need for added economy in square shoulder milling.
  • This unique square shoulder milling cutter uses trigonal inserts with three cutting edges on each side – six total cutting edges – to lower the cost per cutting edge.
  • Inserts lock into place via a strong center screw placed in the same direction as cutting forces, and wiper flats optimize surface finishes.
  • The 90° setting angle ensures a true 90° square in one milling operation, eliminating the need for secondary operations and saving valuable production time and money.
  • With two different cutter family sizes – Square 6 -04 and Square 6 -08 – each having multiple options in insert geometries and pitch.
  • Square 6 offers superior performance in a wide range of materials, operations and machining conditions.
  • Square 6 -08 is the larger insert version for higher depths in more demanding applications.
  • The smallest diameter in this range is 1.5"" up to 6.0" with a maximum depth of cut of 0.295"
  • Square 6 -08 is the perfect choice for larger machines in applications requiring maximum security.
  • Multiple grades and geometries are available to provide peak performance in a variety of workpiece materials.
  • Square 6 offers a nickel-coated, pre-hardened cutter body, which maximizes the life of the cutter body and provides minimal insert runout.
  • The Square 6 -04 effectively tackles a wide range of materials, operations and machining conditions.
  • But from cutting diameters that range from 0.75" to 2.5", with a maximum cutting depth of 0.157".
  • Square 6 -04 is a reliable, cost-effective, first-choice solution for all general machining requirements.
  • Square 6 -04 is a reliable square shoulder milling, face milling, slotting, plunging and slotting by plunging.
  • Square 6 offers a nickel-coated, pre-hardened cutter body, which maximizes the life of the cutter body and provides minimal insert runout.
  • Two different pitch configurations on the cutter body reduce vibrations, improve surface finish and increase component quality.
  • For increased versatility, mounting types include Cylindrical, Weldon, Arbor and Combimaster™.

Specifications

  • AIMS SKU A0112868
  • Brand Seco
  • Model Number 02623182
  • Barcode Number 23182026000101
  • Net Weight (kg) 0.289
  • Designation R220.96-0050-08-5A
  • RPM 10600
  • Peripheral Effective Cutting Edge Count 5
  • Rake Angle Axial (gamp) -6.9 deg

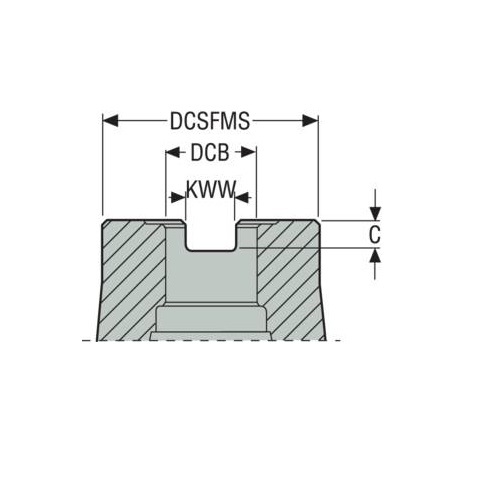

  • Contact Surface Diameter Machine Side (DCSFMS) mm 47

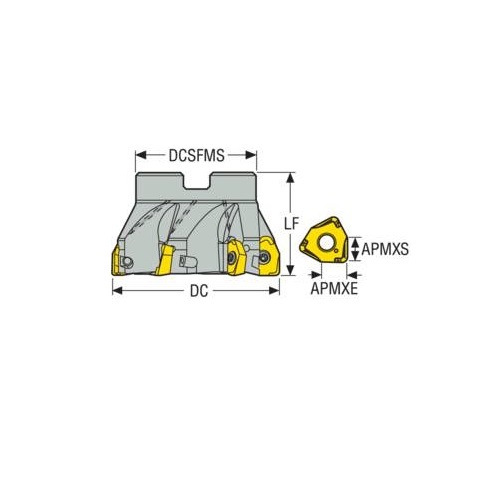

  • Depth Of Cut Maximum Feed Direction Side (APMXS) m 7.5
  • Functional Length (LF) mm 40
  • Rake Angle Orthogonal (gamo) -13.2 deg
  • Cutting X Connection Bore Diameter (DCB) mm 50 x 22
  • Depth Of Cut Maximum Feed Direction End (APMXE) mm 3
  • Keyway Width (KWW) mm 10.4
  • Rake Angle Radial (gamf) -13.2 deg
  • Depth Of Keyway (C) mm 6.3
  • Type Square 6 Milling Cutter
  • Shank Type Arbor
SKU: A0112868

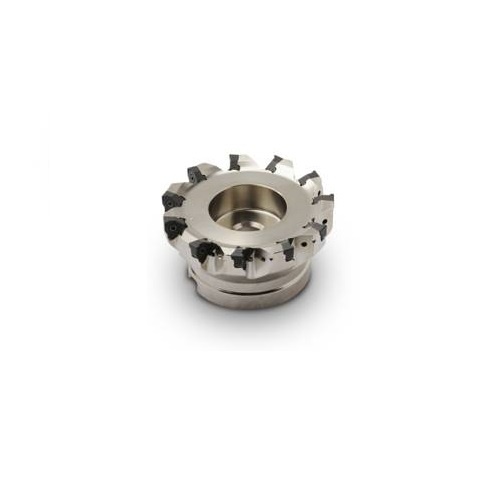

Seco 50 x 22mm 5 Teeth Square Shoulder Milling Cutter (Arbor) R220.96-0050-08-5A

Square 6 Shoulder Arbor Milling Cutter

$819.28
RRP $1,024.10
SAVE $204.82 (20%)
