Description

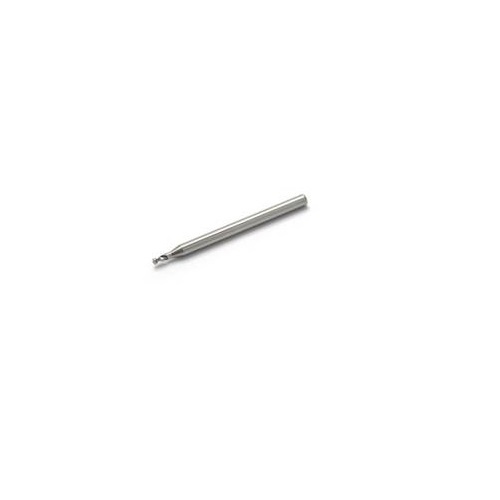

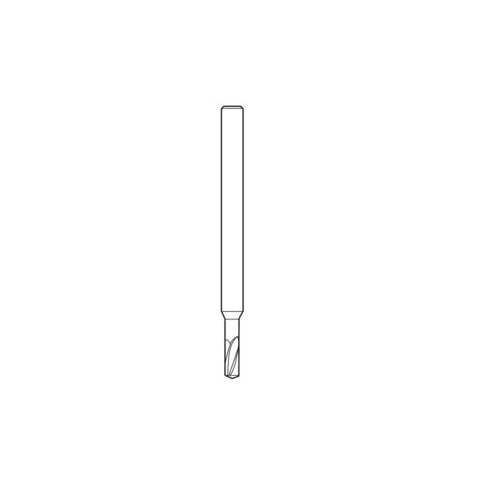

SD22 Solid Carbide Micro Drill Bit

  • SD22 is a pilot micro drill for drilling depths of up to 2xD with diameters in steps of 0.01 mm and a diameter tolerance of 0/+0.005 mm.
  • The shanks are 3 mm with an h6 tolerance.
  • SD22 drills are uncoated and have a 130-degree point angle.

About SD22 and SD26 Drills:

  • SD22 and SD26 drills are capable of delivering dramatic performance increases compared to traditional HSS drills often used today.
  • These improvements include much higher productivity, significantly increased tool life, higher hole quality and lower cost per component.
  • Diameter range 0.1 – 2 mm (.004 - .078 inch).
  • These families were designed specifically for applications in the automotive and medical industries, as well as for small part production in the general engineering industry.

Specifications

  • AIMS SKU A0113176
  • Brand Seco
  • Model Number 2730362
  • Barcode Number 30362027001004
  • Net Weight (kg) 0.003
  • Designation SD22-0.11-0.22-3R1
  • Qty in Pack 10

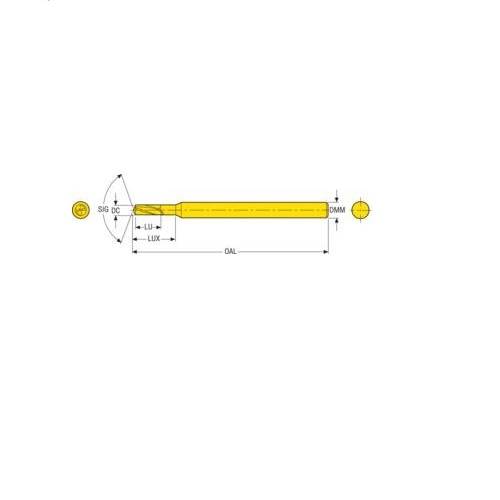

  • Point Angle (SIG) 130.0 deg
  • Shank Diameter (DMM) mm 3
  • Cutting (DC) x Usable Length Max (LUX) mm 0.11 x 0.6
  • Overall Length (OAL) mm 38
  • Peripheral Effective Cutting Edge Count (ZEFP) 2
  • Usable Length (LU) mm 0.2
  • Type SD22 Micro Drill Bit
  • Grade Type Carbide Uncoated
  • Shank Type Cylindrical
SKU: A0113176

Seco SD22 0.11 x 0.6mm Solid Carbide Micro Drill Bit SD22-0.11-0.22-3R1 - Pack of 10

SD22 Solid Carbide Micro Drill Bit

$347.96
