Description

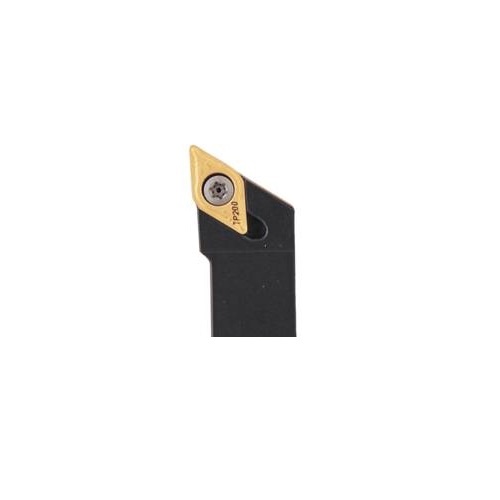

Seco Turning External Toolholder Screw Lock Right 93° D Insert Shape SDJCR-6-2

Turning External Toolholder (Screw Lock - J Type - D Insert Shape - 2mm I.C.)

  • Screw lock.
  • 2mm Inscribed Circle Diameter (IC).
  • D insert shape.
  • J tool type, offset shank with –3° side cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0115417
  • Brand Seco
  • Model Number 00071948
  • Barcode Number 71948000000102
  • Net Weight (kg) 1
  • Designation SDJCR-10-3

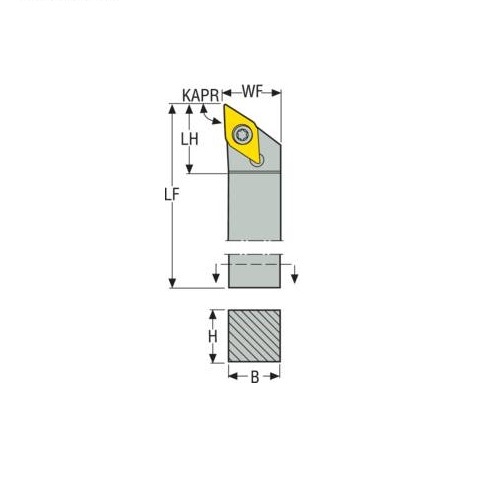

  • Functional Length (LF) 101.6mm
  • Tool Cutting Edge Angle (KAPR) 93.0 deg
  • Shank Width (b) mm 15.9
  • Rake Angle Axial (gamp) 0.0 deg
  • Functional Width (WF) mm 19.1
  • Tool Cutting Edge Angle Code (KAPRC) J
  • Shank Length (LS) mm 76.2
  • Functional Height (HF) mm 15.9
  • Direction Of Cutting (hand) Right
  • Rake Angle Orthogonal (gamo) 0.0 deg
  • Insert Shape Code (SC) D
  • Cutting Edge Length (mm) 3
  • Tool Type J Type
  • Height Of Tool Holder Shank (H) mm 15.9
  • Connection Text Workpiece Side (ctws) DC11T3
  • Connection Text Machine Side (CTMS) 15.88
  • Rake Angle Radial (gamf) 0.0 deg
  • Insert Size Inscribed Circle Diameter (mm) 3
  • Inclination Angle (LAMS) 0.0 deg
  • Type Turning Toolholder
  • Insert Clamping System (ICS) Screw Lock
  • Version (internal/external/both) External
  • Shank Type Square shank
SKU: A0115417

Seco Turning External Toolholder Screw Lock 101.6 x 19.1 x 3mm Right 93° D Insert Shape SDJCR-10-3

Screw Lock - J Type - D Insert Shape - 3mm I.C.

$146.96
RRP $183.70
SAVE $36.74 (20%)
