Description

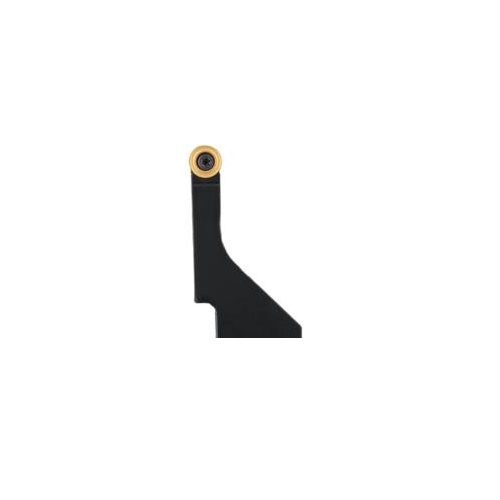

Seco Turning External Toolholder Screw Lock Right 45° R Insert Shape SRGCR-12-2

Turning External Toolholder (Screw Lock - G Type - R Insert Shape)

Screw lock.

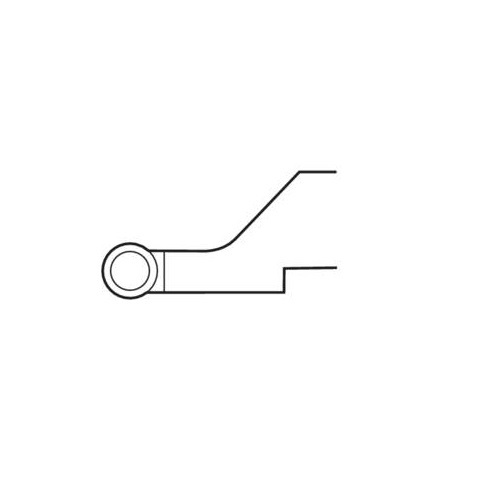

R insert shape.
G tool type, offset shank with 0° side cutting edge angle.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0115475

Brand Seco

Model Number 00013361

Barcode Number 13361000000105

Net Weight (kg) 1

Designation SRGCR-20-4

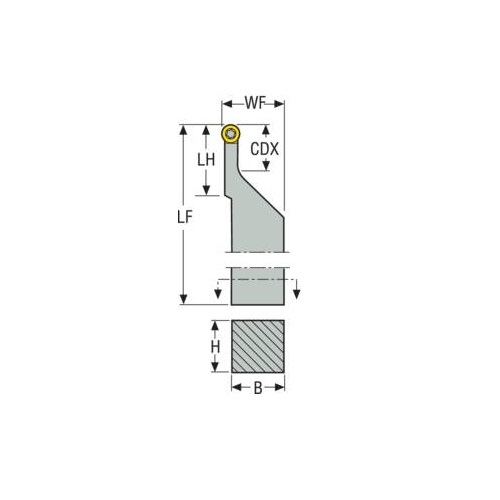

Tool Cutting Edge Angle Code (KAPRC) G

Height Of Tool Holder Shank (H) mm 31.8

Connection Text Workpiece Side (ctws) RC1204

Connection Text Machine Side (CTMS) 31.75

Insert Shape Code (SC) R

Cutting Edge Length (mm) 4

Tool Type G Type

Tool Cutting Edge Angle (KAPR) 45.0 deg

Shank Width (b) mm 31.8

Rake Angle Axial (gamp) 0.0 deg

Insert Size Inscribed Circle Diameter (mm) 4

Inclination Angle (LAMS) 0.0 deg

Functional Length (LF) 152.4mm

Cutting Depth Maximum (cdx) mm 24.6

Direction Of Cutting (hand) Right

Rake Angle Orthogonal (gamo) 0.0 deg

Functional Width (WF) mm 38.1

Type Turning Toolholder
Insert Clamping System (ICS) Screw Lock
Version (internal/external/both) External
Shank Type Square shank
