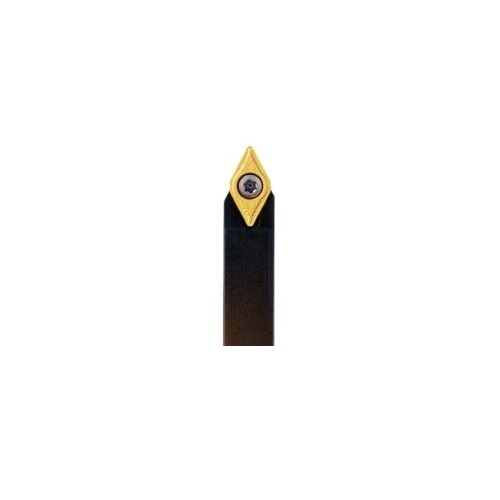

Seco Turning External Toolholder Screw Lock Neutral 62.5° D Insert Shape SDNCN0808K07

Turning External Toolholder (Screw Lock - N Type - D Insert Shape)

  • Screw lock.
  • D insert shape.
  • N tool type.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0115439
  • Brand Seco
  • Model Number 02435828
  • Barcode Number 35828024000105
  • Net Weight (kg) 0.058
  • Designation SDNCN0808K07

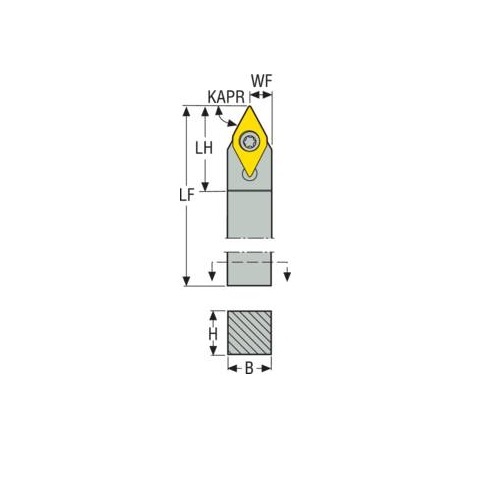

  • Cutting Edge Length (mm) 7
  • Tool Type N Type
  • Tool Cutting Edge Angle (KAPR) 62.5 deg
  • Direction Of Cutting (hand) Neutral
  • Head Length (LH) 16mm
  • Inclination Angle (LAMS) 0.0 deg
  • Functional Length (LF) 125mm
  • Connection Text Workpiece Side (ctws) DC0702
  • Connection Text Machine Side (CTMS) 808
  • Functional Width (WF) mm 4.2
  • Tool Cutting Edge Angle Code (KAPRC) N
  • Height Of Tool Holder Shank (H) mm 8
  • Shank Width (b) mm 8
  • Rake Angle Orthogonal (gamo) 0.0 deg
  • Insert Shape Code (SC) D
  • Type Turning Toolholder
  • Insert Clamping System (ICS) Screw Lock
  • Version (internal/external/both) External
  • Shank Type Square shank
SKU: A0115439

Seco Turning External Toolholder Screw Lock 125 x 4.2 x 7mm Neutral 62.5° D Insert Shape SDNCN0808K07

Screw Lock - N Type - D Insert Shape

$146.96
RRP $183.70
SAVE $36.74 (20%)
