Specifications

AIMS SKU A0115384
Brand Seco
Model Number 00013318
Barcode Number 13318000000109
Net Weight (kg) 0.055
Designation SCMCN-6-2

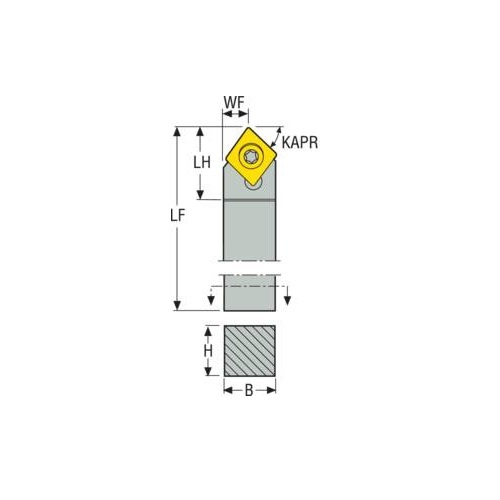

Functional Length (LF) 63.5mm
Height Of Tool Holder Shank (H) mm 9.5
Connection Text Workpiece Side (ctws) CC0602
Connection Text Machine Side (CTMS) 9.525
Functional Width (WF) mm 4.7
Tool Cutting Edge Angle Code (KAPRC) M
Insert Seat Size Code (SSC) 602
Tool Cutting Edge Angle (KAPR) 50.0 deg
Shank Width (b) mm 9.5
Rake Angle Axial (gamp) 0.0 deg
Insert Shape Code (SC) C
Cutting Edge Length (mm) 2
Tool Type M Type
Shank Length (LS) mm 52.8
Functional Height (HF) mm 9.5
Direction Of Cutting (hand) Neutral
Rake Angle Orthogonal (gamo) 0.0 deg
Insert Size Inscribed Circle Diameter (mm) 2
Inclination Angle (LAMS) 0.0 deg

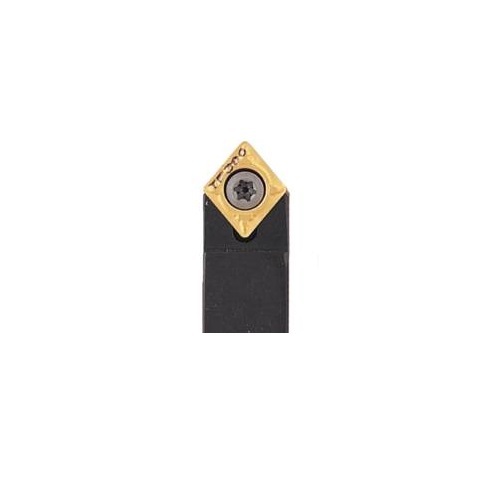

• Type Turning Toolholder
• Insert Clamping System (ICS) Screw Lock
• Version (internal/external/both) External
• Shank Type Square shank
