Specifications
- AIMS SKU A0115409
- Brand Seco
- Model Number 00071941
- Barcode Number 71941000000103
- Net Weight (kg) 0.057
- Designation SDJCL-6-2

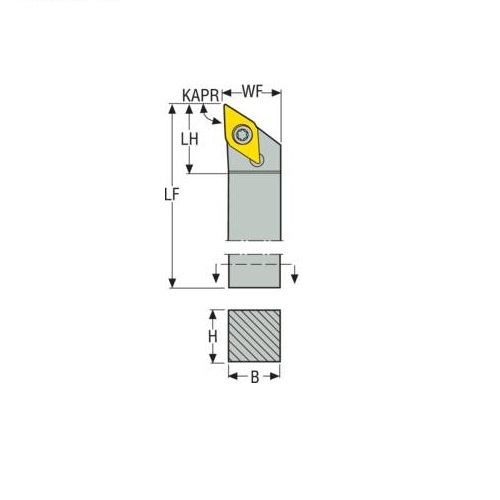

- Functional Length (LF) 63.5mm
- Insert Shape Code (SC) D
- Insert Size Inscribed Circle Diameter (mm) 2
- Functional Width (WF) mm 12.7
- Cutting Edge Length (mm) 2
- Inclination Angle (LAMS) 0.0 deg
- Tool Cutting Edge Angle Code (KAPRC) J
- Tool Type J Type
- Height Of Tool Holder Shank (H) mm 9.5
- Tool Cutting Edge Angle (KAPR) 93.0 deg
- Connection Text Workpiece Side (ctws) DC0702
- Shank Width (b) mm 9.5
- Direction Of Cutting (hand) Left
- Connection Text Machine Side (CTMS) 9.525
- Rake Angle Axial (gamp) 0.0 deg
- Rake Angle Orthogonal (gamo) 0.0 deg
- Type Turning Toolholder
- Shank Type Square shank
- Version (internal/external/both) External
- Insert Clamping System (ICS) Screw Lock
SKU: A0115409

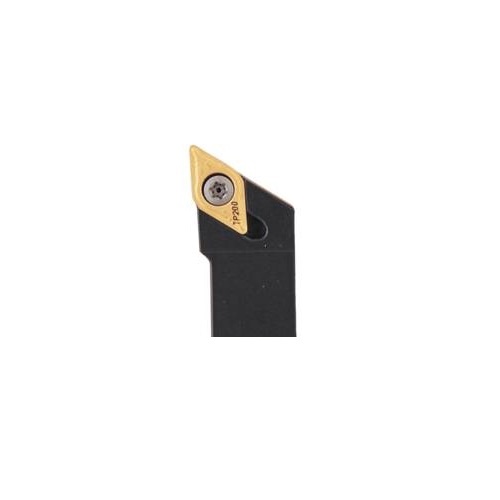

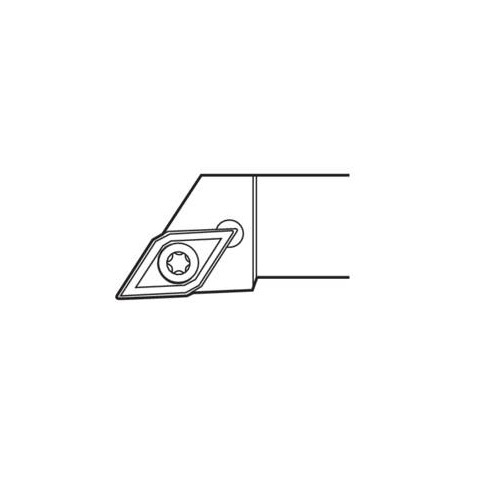

Seco Turning External Toolholder Screw Lock 63.5 x 12.7 x 2mm Left 93° D Insert Shape SDJCL-6-2
Screw Lock - J Type - D Insert Shape - 2mm I.C.
$152.24
SAVE $38.06 (20%)
