Specifications
- AIMS SKU A0115386
- Brand Seco
- Model Number 75011235
- Barcode Number 11235750000109
- Net Weight (kg) 0.059
- Designation SDACL0808K07
- Cutting Edge Length (mm) 7
- Tool Type A Type
- Tool Cutting Edge Angle (KAPR) 90.0 deg
- Direction Of Cutting (hand) Left
- Head Length (LH) 13mm
- Inclination Angle (LAMS) 0.0 deg
- Functional Length (LF) 125mm
- Connection Text Workpiece Side (ctws) DC0702
- Connection Text Machine Side (CTMS) 808
- Functional Width (WF) mm 8.7
- Tool Cutting Edge Angle Code (KAPRC) A
- Height Of Tool Holder Shank (H) mm 8
- Shank Width (b) mm 8
- Rake Angle Orthogonal (gamo) 0.0 deg
- Insert Shape Code (SC) D
- Type Turning Toolholder
- Insert Clamping System (ICS) Screw Lock
- Version (internal/external/both) External
- Shank Type Square shank
SKU: A0115386

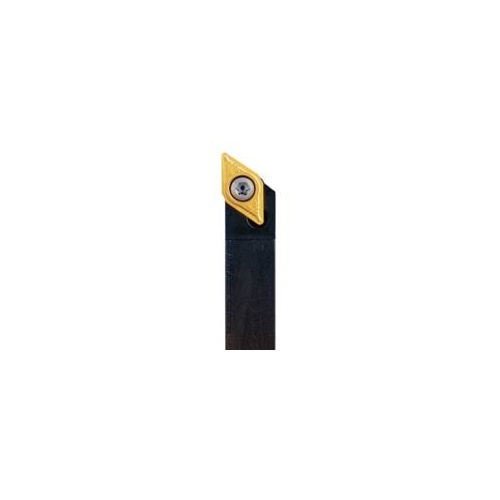

Seco Turning External Toolholder Screw Lock 125 x 8 x 7mm Left 90° D Insert Shape SDACL0808K07
Screw Lock - A Type - D Insert Shape
$146.96
SAVE $36.74 (20%)
