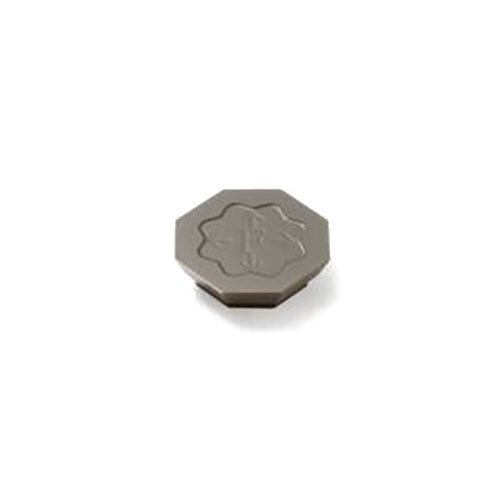

Seco Octomill Face Milling Insert Size 07 4.74 x 18.11 x 18.11mm Right Grade MK1500 N Type M16 Designation OFEN0704ZZTR-M16,MK1500 Pack of 10

Description

Seco Octomill Face Milling Insert Size 07 4.74 x 18.11 x 18.11mm Right Grade MK1500 N Type M16 Designation OFEN0704ZZTR-M16,MK1500 Pack of 10

Octomill Insert Size 07 Grade MK1500 N Type (OFEN07ZZ-M16)

Medium machining condition.

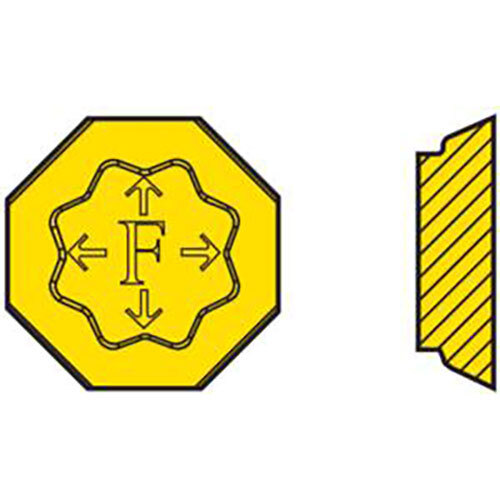

OFEN07ZZ-M16 Insert Seat Size Code (SSC).
T type.

MK1500 Grade

CVD-coated grade based on Duratomic coating. Basic grade for milling cast iron and nodular cast iron, with or without coolant.
Ti (C, N) – Al2O3.

About Seco Octomill Insert Size 07

Cutter range 50-315 mm (2-5 inches).
Max depth of cut 5 mm (0.197 inch)
Recommended depth of cut 4 mm (0.157 inch).
8 cutting edges, single-sided inserts.

Specifications

AIMS SKU A0121706

Brand Seco

Model Number 02566034

Barcode Number 66034025001007

Designation OFEN0704ZZTR-M16,MK1500

Grade Type Carbide CVD

Cutting Edge Count (CEDC) 4

Insert Hand (IH) Right

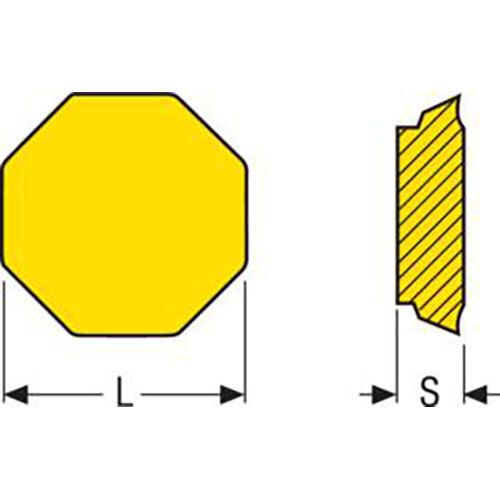

Insert Thickness (S) mm 4.74

Corner Radius (RE) mm 0.5

Insert Seat Size Code (SSC) OFEN07..ZZ..-M16

Inscribed Circle Diameter (IC) mm 18.11

Clearance Angle Major (an) Deg 26.0 deg

Theoretical Cutting Edge Length (L) mm 18.11

Wiper Edge Length (bs) Mm 6.5
