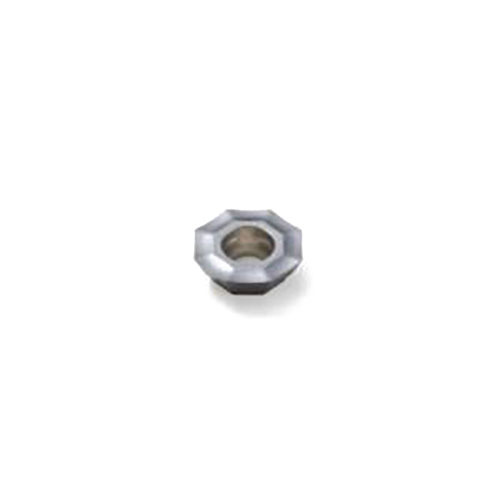

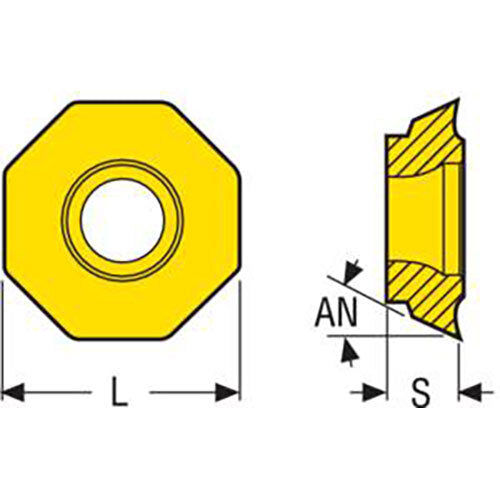

Seco Octomill Face Milling Insert Size 05 3.77 x 12.7 x 12.7mm Neutral Grade F40M X Type M08 Designation OFEX05T305TN-M08,F40M Pack of 10

Octomill Insert Size 05 Grade F40M X Type (OFEX05T3-M08)

  • Medium machining condition.
  • OFEX05T3 Insert Seat Size Code (SSC).
  • X type.

F40M Grade

  • PVD-coated grade for fine to medium rough milling.
  • First choice for milling with small feeds and/or low cutting speeds.
  • Excellent for milling when there is a risk of vibrations and when coolant is used. Recommended for machining superalloys.
  • (Ti, Al) N – TiN.

About Seco Octomill Insert Size 05

  • Cutter range 32-315 mm (1.25-5 inch).
  • Max depth of cut 3.5 mm (0.138 inches).
  • Recommended depth of cut 2.5 mm (0.098 inch).
  • 8 cutting edges, single-sided inserts.

Specifications

  • AIMS SKU A0121644
  • Brand Seco
  • Model Number 00094729
  • Barcode Number 94729000001006
  • Designation OFEX05T305TN-M08,F40M
SKU: A0121644

Seco Octomill Face Milling Insert Size 05 3.77 x 12.7 x 12.7mm Neutral Grade F40M X Type M08 Designation OFEX05T305TN-M08,F40M Pack of 10

Octomill Insert Size 05 Grade F40M X Type (OFEX05T3-M08)

$321.28
