Description

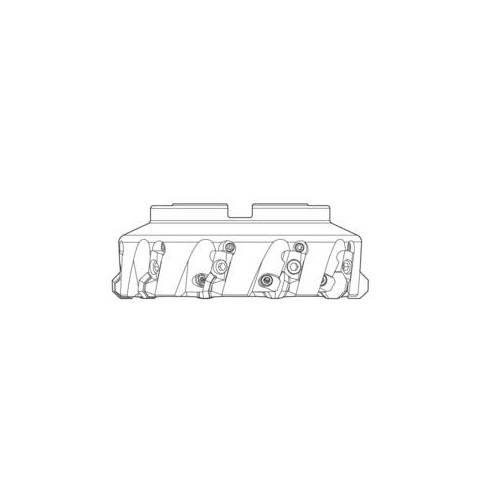

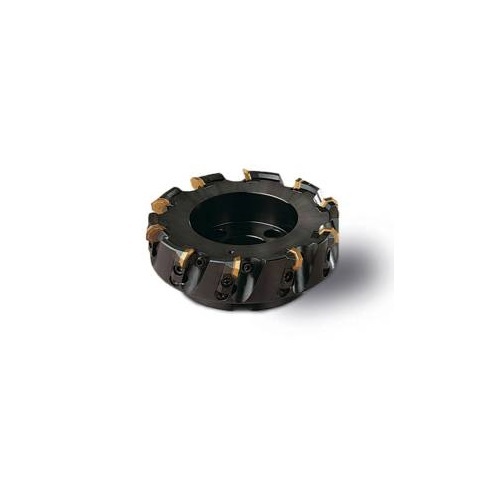

Octomill Face Milling Cutter (Arbor - Cassettes)

  • Octomill has 8 cutting edges, single-sided inserts. (Insert not included).
  • Octomill face milling cutter for insert 07 is ideal for medium sized machines in the 15HP to 25HP range.

Octomill Face Milling Cutter (To be used with Insert 07)

  • Cutter range 50-315 mm (2-5 inch).
  • Max depth of cut 5 mm (0.197 inch).
  • Recommended depth of cut 4 mm (0.157 inch).

___________________________________

About Octomill 05 and 07

  • Octomillâ„¢ 05 and 07 provide one of the most comprehensive ranges of face milling cutters on the market.
  • Designed to handle many applications, Octomill 05 and 07 offer high performance and process security.
  • These cutters excel in medium to rough machining in steel and stainless steel.
  • With eight edges, the cutters are more economical than traditional cutters due to a lower cost per cutting edge.

Specifications

  • AIMS SKU A0114294
  • Brand Seco
  • Model Number 75077234
  • Barcode Number 77234750000108
  • Net Weight (kg) 2.3
  • Designation R220.43-0100-07C
  • Tool Cutting Edge Angle In Feed Direction Side 43.0 deg
  • Rotational Speed Maximum (rpmx) 4300 rpm
  • Cutting Diameter (DC) mm 100
  • Rake Angle Axial (gamp) 15.0 deg
  • Connection Bore Diameter (DCB) mm 32
  • Depth Of Cut Max In Feed Direction Side (APMXS) mm 5
  • Cutting Dia Max (DCX) mm 112
  • Functional Length (LF) mm 50
  • Rake Angle Orthogonal (gamo) 15.0 deg
  • Depth Of Key Way (C) mm 8
  • Contact Surface Diameter Machine Side (DCFMS) mm 77
  • Peripheral Effective Cutting Edge Count (ZEFP) 6
  • Keyway Width (KWW) mm 14.4
  • Rake Angle Radial (gamf) 5.0 deg
  • Type Face Milling Cutter
  • Shank Type Arbor
SKU: A0114294

Seco Octomill Face Milling Cutter (Arbor) 112 x 14.4mm 6 Teeth 4300rpm R220.43-0100-07C

Octomill Face Milling Cutter - Suits 07

$1,513.60
RRP $1,892.00
SAVE $378.40 (20%)
