Description

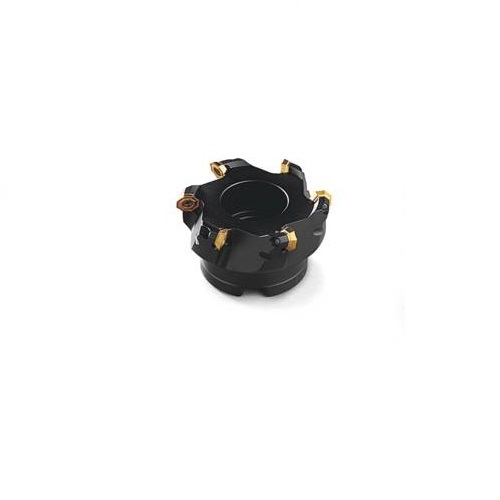

Seco Octomill Face Milling Cutter (Arbor)

Octomill Face Milling Cutter (Arbor)

  • Octomill has 8 cutting edges, single-sided inserts. (Insert not included).
  • Octomill face milling cutter for insert 05 is the perfect match for small machines up to 15HP, where small component/depth of cuts are used.

Octomill Face Milling Cutter (To be used with Insert 05)

___________________________________

About Octomill 05 and 07

  • Octomillâ„¢ 05 and 07 provide one of the most comprehensive ranges of face milling cutters on the market.
  • Designed to handle many applications, Octomill 05 and 07 offer high performance and process security.
  • These cutters excel in medium to rough machining in steel and stainless steel.
  • With eight edges, the cutters are more economical than traditional cutters due to a lower cost per cutting edge.

Specifications

  • AIMS SKU A0114252
  • Brand Seco
  • Model Number 75079618
  • Barcode Number 79618750000104
  • Net Weight (kg) 3.3

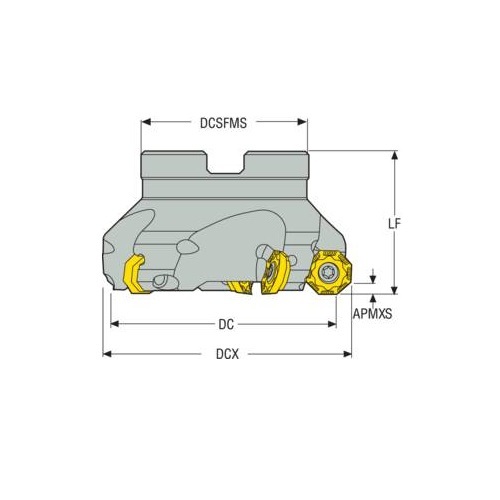

  • Designation R220.43-0125-05
  • Tool Cutting Edge Angle In Feed Direction Side 43.0 deg
  • Rotational Speed Maximum (rpmx) 7500 rpm
  • Cutting Diameter (DC) mm 125
  • Rake Angle Axial (gamp) 15.0 deg

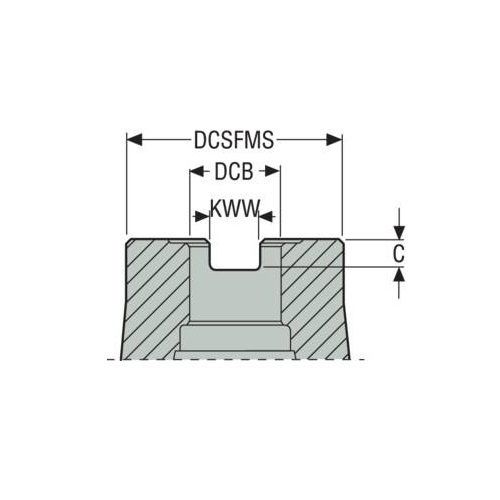

  • Connection Bore Diameter (DCB) mm 40
  • Depth Of Cut Max In Feed Direction Side (APMXS) mm 3.5
  • Cutting Dia Max (DCX) mm 134
  • Functional Length (LF) mm 63
  • Rake Angle Orthogonal (gamo) 15.0 deg
  • Depth Of Key Way (C) mm 9
  • Contact Surface Diameter Machine Side (DCFMS) mm 90
  • Peripheral Effective Cutting Edge Count (ZEFP) 8
  • Keyway Width (KWW) mm 16.4
  • Rake Angle Radial (gamf) 5.0 deg
  • Type Face Milling Cutter
  • Shank Type Arbor
SKU: A0114252

Seco Octomill Face Milling Cutter (Arbor) 134 x 16.4mm 8 Teeth 9400rpm R220.43-0125-05

Octomill Face Milling Cutter (Arbor) - Suits 05

$1,522.40
RRP $1,903.00
SAVE $380.60 (20%)
