Description

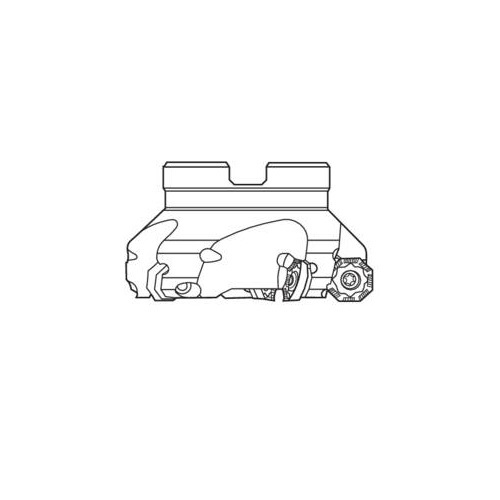

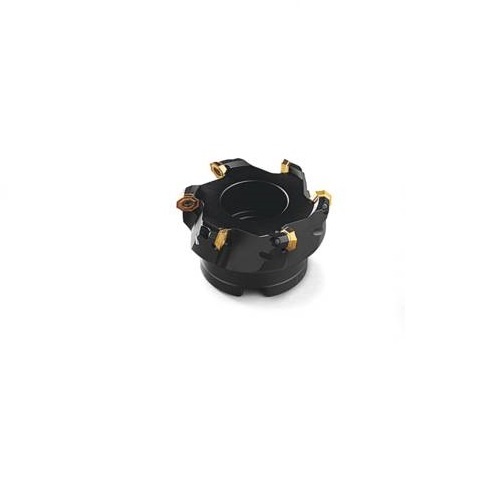

Seco Octomill Face Milling Cutter (Arbor)

Octomill Face Milling Cutter (Arbor - With Through Coolant Supply)

  • Octomill has 8 cutting edges, single-sided inserts. (Insert not included).
  • Octomill face milling cutter for insert 05 is the perfect match for small machines up to 15HP, where small component/depth of cuts are used.

Octomill Face Milling Cutter (To be used with Insert 05)

___________________________________

About Octomill 05 and 07

  • Octomillâ„¢ 05 and 07 provide one of the most comprehensive ranges of face milling cutters on the market.
  • Designed to handle many applications, Octomill 05 and 07 offer high performance and process security.
  • These cutters excel in medium to rough machining in steel and stainless steel.
  • With eight edges, the cutters are more economical than traditional cutters due to a lower cost per cutting edge.

Specifications

  • AIMS SKU A0114243
  • Brand Seco
  • Model Number 00026516
  • Barcode Number 26516000000103
  • Net Weight (kg) 0.219
  • Designation R220.43-0040-05-4A
  • Tool Cutting Edge Angle In Feed Direction Side 43.0 deg
  • Rotational Speed Maximum (rpmx) 13200 rpm
  • Cutting Diameter (DC) mm 40
  • Rake Angle Axial (gamp) 15.0 deg

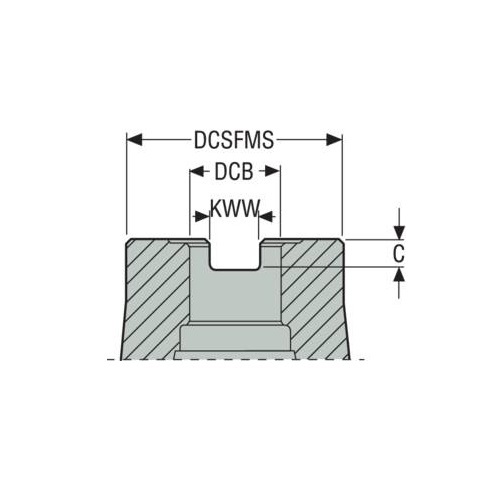

  • Connection Bore Diameter (DCB) mm 16
  • Depth Of Cut Max In Feed Direction Side (APMXS) mm 3.5
  • Cutting Dia Max (DCX) mm 49
  • Functional Length (LF) mm 40
  • Rake Angle Orthogonal (gamo) 15.0 deg
  • Depth Of Key Way (C) mm 5.6
  • Contact Surface Diameter Machine Side (DCFMS) mm 35
  • Peripheral Effective Cutting Edge Count (ZEFP) 4
  • Keyway Width (KWW) mm 8.4
  • Rake Angle Radial (gamf) 5.0 deg
  • Type Face Milling Cutter
  • Shank Type Arbor
SKU: A0114243

Seco Octomill Face Milling Cutter (Arbor) 49 x 8.4mm 4 Teeth 13200rpm R220.43-0040-05-4A

Octomill Face Milling Cutter (Arbor) - Suits 05

$754.16
RRP $942.70
SAVE $188.54 (20%)
