Specifications

AIMS SKU A0115170
Brand Seco
Model Number 00012888
Barcode Number 12888000000108
Net Weight (kg) 1

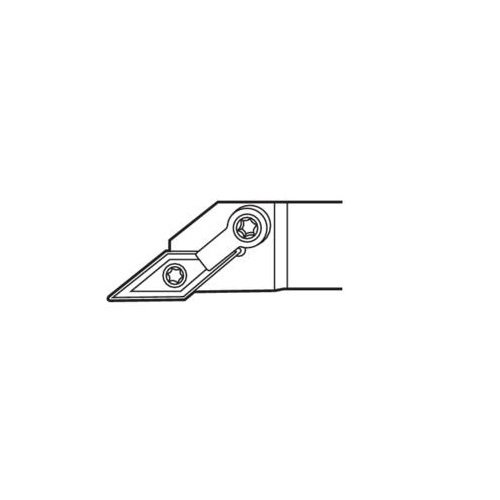

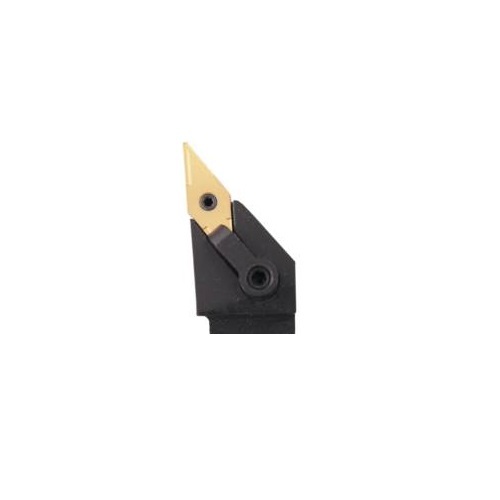

Designation MVJNR-20-4D
Insert Seat Size Code (SSC) 1604

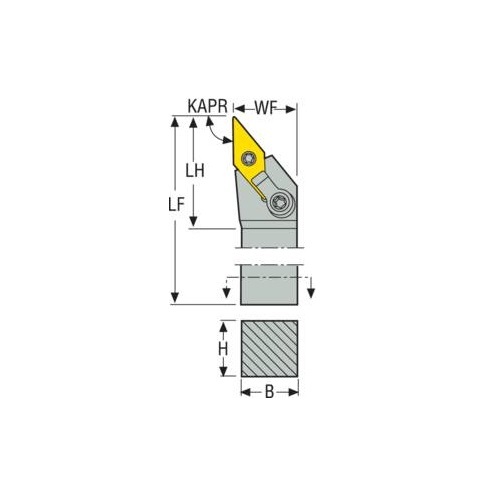

Tool Cutting Edge Angle (KAPR) 93.0 deg
Connection Text Workpiece Side (ctws) VN2204
Connection Text Machine Side (CTMS) 31.75
Functional Width (mm) 38.1
Insert Size Inscribed Circle Diameter (mm) 4
Cutting Edge Length (mm) 4
Tool Type J Type
Shank Length (LS) mm 101.1
Functional Height (HF) mm 31.8
Shank Width (b) mm 31.8
Rake Angle Axial (gamp) -13.0 deg
Insert Shape Code (SC) V
Ramping Angle Maximum (RPMX) 51.1 deg
Inclination Angle (LAMS) -13.0 deg
Functional Length (LF) 152.4mm
Height Of Tool Holder Shank (H) mm 31.8
Cutting Depth Maximum (cdx) mm 16.6
Direction Of Cutting (hand) Right
Rake Angle Orthogonal (gamo) -4.0 deg
Cutting Diameter Internal Minimum 3 (mm) 160
Functional Width (WF) mm 38.1
Tool Cutting Edge Angle Code (KAPRC) J
• Type Turning Toolholder
• Insert Clamping System (ICS) Multiple Lock
• Version (internal/external/both) External
• Shank Type Square shank
