Description

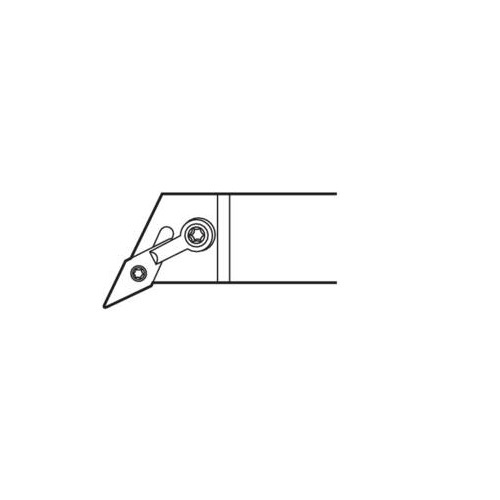

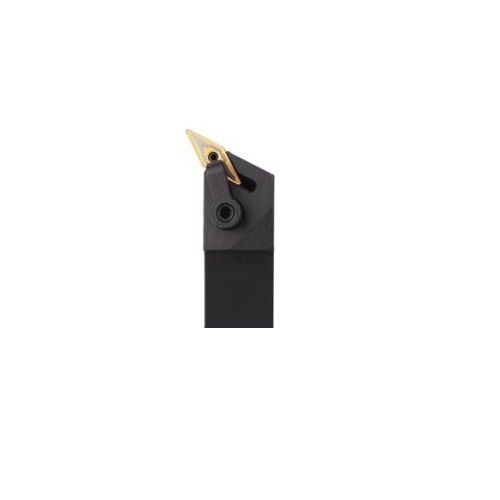

Seco Turning External Toolholder Multiple Lock Left 117.3° V Insert Shape MVTNL-12-3B

Turning External Toolholder (Multiple Lock - T Type - V Insert Shape)

Multiple locks - multiple lock assembly, (Pin and clamp lock) / (M-Type tool holders).
V insert shape.
T tool type, offset shank with –30° side or end cutting edge angle.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0115175

Brand Seco

Model Number 00052353

Barcode Number 52353000000109

Net Weight (kg) 0.38

Designation MVTNL-12-3B

Insert Seat Size Code (SSC) 1604

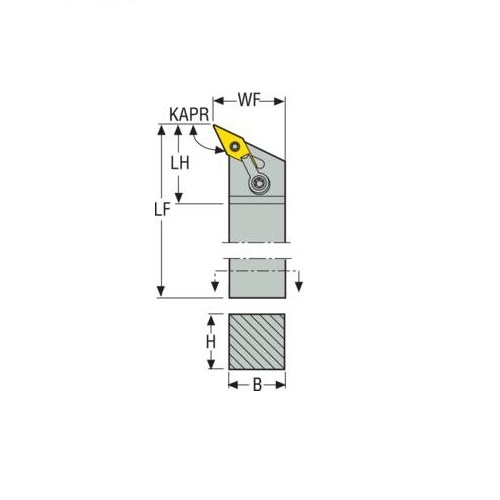

Tool Cutting Edge Angle (KAPR) 117.3 deg

Connection Text Workpiece Side (ctws) VN1604

Connection Text Machine Side (CTMS) 19.05

Functional Width (mm) 25.4

Insert Size Inscribed Circle Diameter (mm) 3

Cutting Edge Length (mm) 3

Tool Type T Type

Shank Length (LS) mm 70.2

Functional Height (HF) mm 19.1

Shank Width (b) mm 19.1

Rake Angle Axial (gamp) -13.0 deg

Insert Shape Code (SC) V

Ramping Angle Maximum (RPMX) 26.8 deg

Inclination Angle (LAMS) -13.0 deg

Functional Length (LF) 114.3mm

Height Of Tool Holder Shank (H) mm 19.1

Cutting Depth Maximum (cdx) mm 7.1

Direction Of Cutting (hand) Left

Rake Angle Orthogonal (gamo) -4.0 deg

Cutting Diameter Internal Minimum 3 (mm) 120

Functional Width (WF) mm 25.4

Tool Cutting Edge Angle Code (KAPRC) T

Type Turning Toolholder
Insert Clamping System (ICS) Multiple Lock
Version (internal/external/both) External
Shank Type Square shank
