Specifications

AIMS SKU A0121829
Brand Seco
Model Number 74068355
Barcode Number 68355740000105
Designation MM16-20013-R08A8-E06,T60M
Coolant Supply Property (CSP) 0
Ramping Angle Maximum (RPMX) deg 15.0 deg
Net Weight Kg 0.047
Torque (TQ) Nm 16
Flute Helix Angle (FHA) deg 8.0 deg
Helical Interpolation Hole Diameter Max (cmax) Mm 38.2
Rake Angle Axial (gamp) Deg 20.0 deg
Rake Angle Radial (gamf) Deg 16.0 deg
Grade Type Carbide PVD
Helical Interpolation Hole Diameter Min (cmin) Mm 24.2
Tool Cutting Edge Angle In Feed Direction Side 90.0 deg

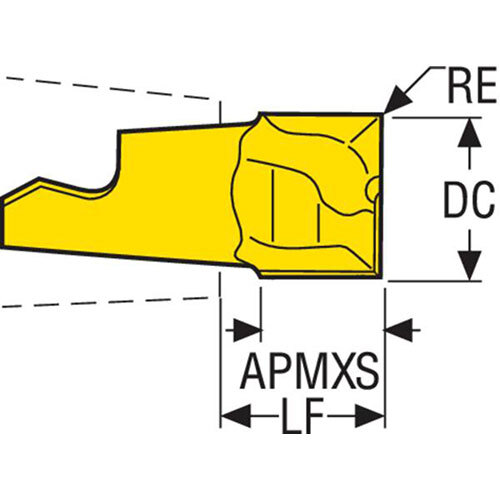

Depth Of Cut Max In Feed Direction Side (APMXS) mm 12.7
Peripheral Effective Cutting Edge Count (ZEFP) 2
Corner Radius (RE) mm 0.8
Cutting Edge Effective Length (LE) mm 12.7
Cutting Diameter (DC) mm 20
Functional Length (LF) mm 15.42

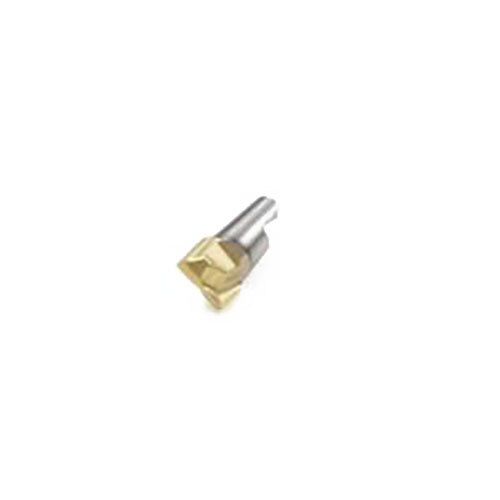

• Type Minimaster™ Square Shoulder Insert
• Grade T60M
• Insert Taper Size MM08
