Specifications

AIMS SKU A0121760
Brand Seco
Model Number 00023721
Barcode Number 23721000000203
Designation MM08-07809-R02A30-M03,F40M
Coolant Supply Property (CSP) 1
Ramping Angle Maximum (RPMX) deg 15.0 deg
Net Weight Kg 0.008
Torque (TQ) Nm 8
Flute Helix Angle (FHA) deg 30.0 deg
Helical Interpolation Hole Diameter Max (cmax) Mm 15
Rake Angle Axial (gamp) Deg 0.0 deg
Rake Angle Radial (gamf) Deg 10.0 deg
Grade Type Carbide PVD
Helical Interpolation Hole Diameter Min (cmin) Mm 9.6
Tool Cutting Edge Angle In Feed Direction Side 90.0 deg

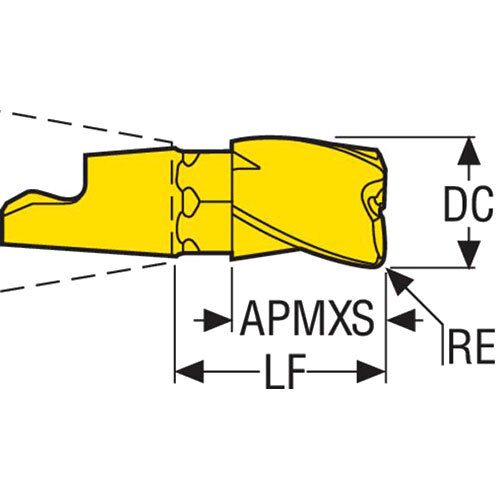

Depth Of Cut Max In Feed Direction Side (APMXS) mm 10
Peripheral Effective Cutting Edge Count (ZEFP) 3
Corner Radius (RE) mm 0.2
Cutting Edge Effective Length (LE) mm 10
Cutting Diameter (DC) mm 7.8
Functional Length (LF) mm 13

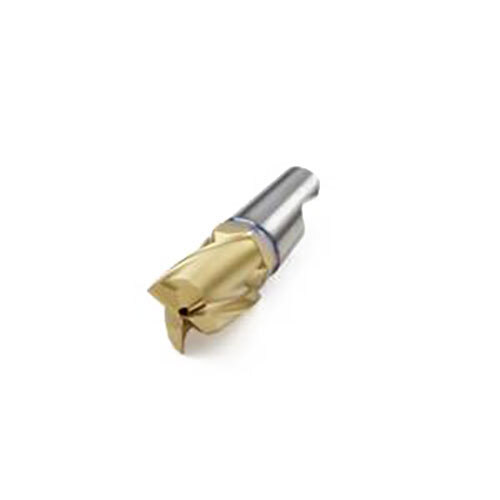

• Type Minimaster™ Square Shoulder Insert
• Grade F40M
• Insert Taper Size MM06
