Specifications

AIMS SKU A0122052
Brand Seco
Model Number 00023794
Barcode Number 23794000000207
Designation MM12-16016-D3020P-M02,F15M

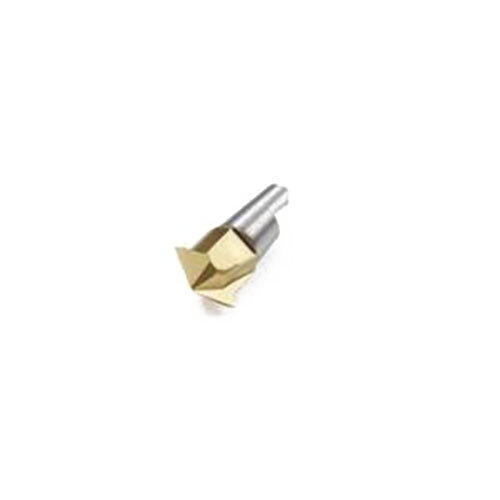

Type Minimaster™ Chamfering Insert
Coolant Supply Property (CSP) 0
Back End Chamfer Angle (BEC) deg 60.0 deg
Net Weight Kg 0.024
Torque (TQ) Nm 16
Neck Diameter (DN) mm 11.5
Insert Taper Size MM12
Rake Angle Axial (gamp) Deg 0.0 deg
Rake Angle Radial (gamf) Deg 0.0 deg
Tool Cutting Edge Angle In Feed Direction Side 30.0 deg
Depth Of Cut Max In Feed Direction Side (APMXS) mm 4.3
Cutting Diameter Maximum (DCX) mm 16
Peripheral Effective Cutting Edge Count (ZEFP) 2
Cutting Diameter (DC) mm 1
Functional Length (LF) mm 15.2
Grade Type Carbide PVD
Grade F15M
