Specifications
- AIMS SKU A0122051
- Brand Seco
- Model Number 74004992
- Barcode Number 4992740000203
- Type Minimaster™ Chamfering Insert
- Designation MM16-16011-4540-E06,T60M
- Rake Angle Axial (gamp) Deg 15.0 deg
- Tool Cutting Edge Angle In Feed Direction Side 45.0 deg
- Peripheral Effective Cutting Edge Count (ZEFP) 2
- Functional Length (LF) mm 13.25
- Insert Taper Size MM16
- Rake Angle Radial (gamf) Deg 4.0 deg
- Depth Of Cut Max In Feed Direction Side (APMXS) mm 3.9
- Cutting Edge Effective Length (LE) mm 10.9
- Grade Type Carbide PVD
- Net Weight Kg 0.037
- Coolant Supply Property (CSP) 0
- Cutting Diameter Maximum (DCX) mm 16
- Cutting Diameter (DC) mm 7.69
- Grade T60M
- Torque (TQ) Nm 16
SKU: A0122051

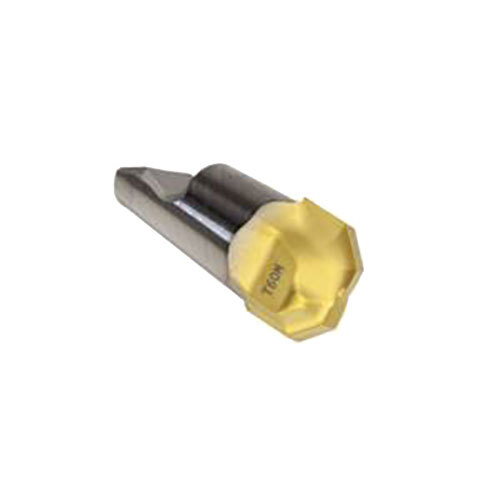

Seco Minimaster™ Chamfering Insert MM16 3.9 x 7.69 x 13.25mm T60M Grade MM16-16011-4540-E06,T60M Pack of 2
Minimaster™ Chamfering Insert MM16 T60M (45° KAPRS)
$343.20
