Specifications

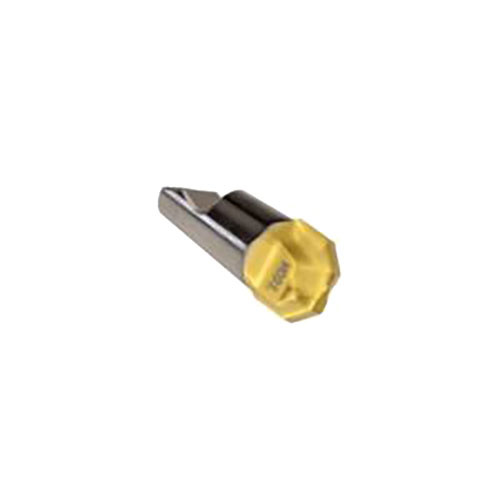

AIMS SKU A0122049
Brand Seco
Model Number 74034543
Barcode Number 34543740000208
Designation MM08-08005-4520-E03,T60M
Type Minimaster™ Chamfering Insert
Depth Of Cut Max In Feed Direction Side (APMXS) mm 2.1
Net Weight Kg 0.005
Torque (TQ) Nm 8
Insert Taper Size MM08
Rake Angle Axial (gamp) Deg 16.0 deg
Rake Angle Radial (gamf) Deg 6.0 deg
Coolant Supply Property (CSP) 0
Tool Cutting Edge Angle In Feed Direction Side 45.0 deg
Cutting Diameter Maximum (DCX) mm 8
Peripheral Effective Cutting Edge Count (ZEFP) 2
Cutting Edge Effective Length (LE) mm 5.5
Cutting Diameter (DC) mm 3.87
Functional Length (LF) mm 6.7
Grade Type Carbide PVD
Grade T60M
