Specifications

AIMS SKU A0122048
Brand Seco
Model Number 74080705
Barcode Number 80705740000209

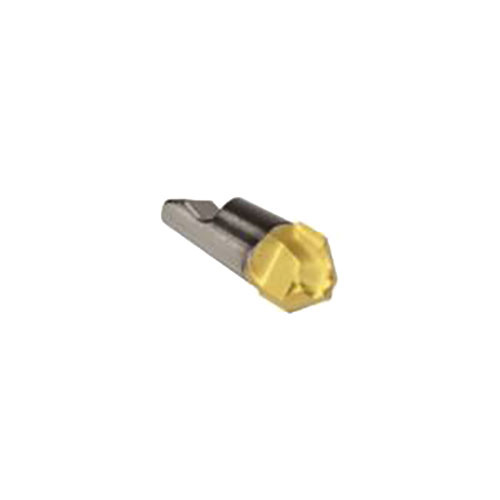

Type Minimaster™ Chamfering Insert
Designation MM06-06004-4515-E02,T60M
Rake Angle Axial (gamp) Deg 8.0 deg
Tool Cutting Edge Angle In Feed Direction Side 45.0 deg
Peripheral Effective Cutting Edge Count (ZEFP) 2
Functional Length (LF) mm 5.1
Insert Taper Size MM06
Rake Angle Radial (gamf) Deg 6.0 deg
Depth Of Cut Max In Feed Direction Side (APMXS) mm 2.1
Cutting Edge Effective Length (LE) mm 4
Grade Type Carbide PVD
Net Weight Kg 0.002
Coolant Supply Property (CSP) 0
Cutting Diameter Maximum (DCX) mm 6
Cutting Diameter (DC) mm 1.8
Grade T60M
Torque (TQ) Nm 4
