Specifications

AIMS SKU A0122042
Brand Seco
Model Number 74004538
Barcode Number 4538740000203
Designation MM16-16008-C90-M06,T60M
Grade Type Carbide PVD
Functional Length (LF) mm 19.2
Cutting Diameter (DC) mm 16
Cutting Edge Effective Length (LE) mm 16.7
Peripheral Effective Cutting Edge Count (ZEFP) 2
Depth Of Cut Max In Feed Direction Side (APMXS) mm 7.5
Coolant Supply Property (CSP) 0
Rake Angle Radial (gamf) Deg -9.0 deg
Rake Angle Axial (gamp) Deg 7.0 deg
Torque (TQ) Nm 16
Net Weight Kg 0.04
Point Angle (SIG) deg 90.0 deg

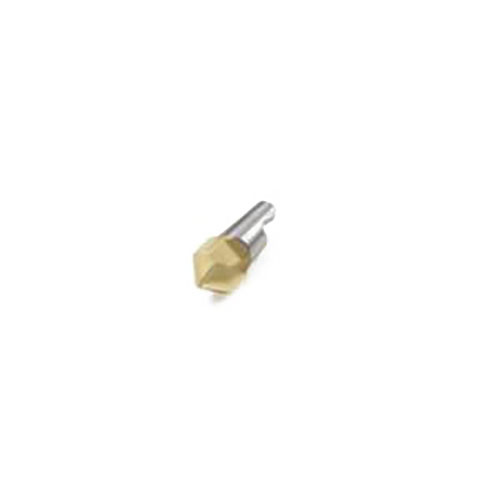

• Type Minimaster™ Centre Drilling Insert
• Grade T60M
• Insert Taper Size MM06
