Specifications

AIMS SKU A0122040
Brand Seco
Model Number 74001394
Barcode Number 1394740000208
Designation MM10-10005-C90-M03,T60M
Grade Type Carbide PVD

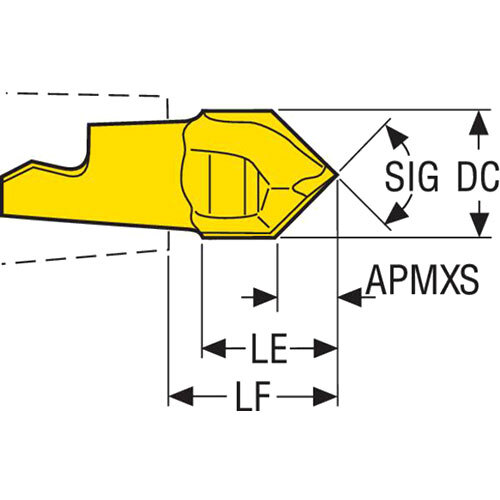

Functional Length (LF) mm 11.8
Cutting Diameter (DC) mm 10
Cutting Edge Effective Length (LE) mm 10
Peripheral Effective Cutting Edge Count (ZEFP) 2
Depth Of Cut Max In Feed Direction Side (APMXS) mm 4.7
Coolant Supply Property (CSP) 0
Rake Angle Radial (gamf) Deg -9.0 deg
Rake Angle Axial (gamp) Deg 7.0 deg
Torque (TQ) Nm 12
Net Weight Kg 0.01
Point Angle (SIG) deg 90.0 deg

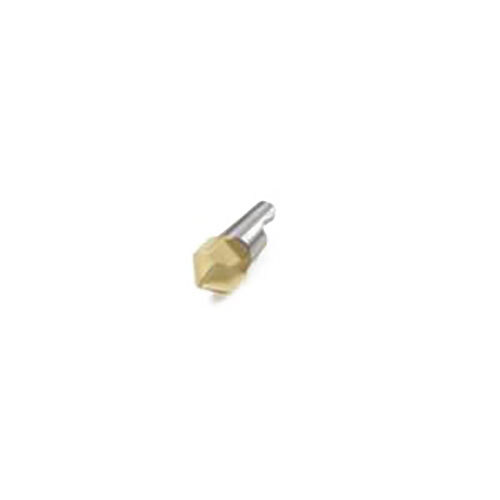

• Type Minimaster™ Centre Drilling Insert
• Grade T60M
• Insert Taper Size MM06
