Specifications

AIMS SKU A0122830
Brand Seco
Model Number 74016415
Barcode Number 16415740001001

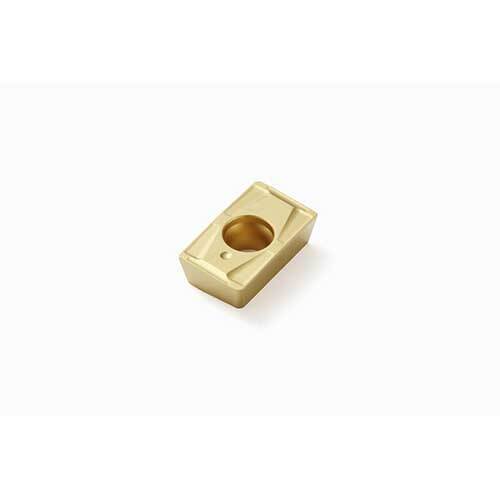

Type Milling Insert
Designation APFT1604PDTR-D15,T25M
Wiper Edge Length (bs) Mm 1.2
Insert Seat Size Code (SSC) APFT16..
Cutting Edge Effective Length (LE) mm 15.8
Grade Type Carbide CVD

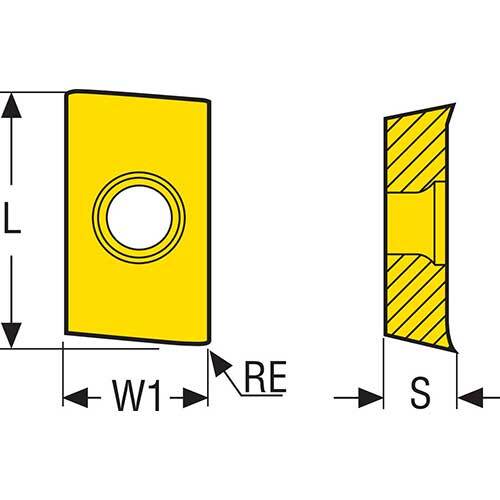

Theoretical Cutting Edge Length (L) mm 16.45
Corner Radius (RE) mm 0.8
Insert Hand (IH) Right
Weight (kg) 0.008
Insert Width (w1) Mm 9.5
Clearance Angle Major (an) Deg 11.0 deg
Insert Thickness (S) mm 4.96
Cutting Edge Count (CEDC) 2
Grade T25M
Insert Rake Angle (GAN) deg 8.0 deg
