Specifications
- AIMS SKU A0122836
- Brand Seco
- Model Number 74095065
- Barcode Number 95065740001005
- Type Milling Insert
- Designation XCEX13T304FR-E06,HX
- Wiper Edge Length (bs) Mm 0.7
- Clearance Angle Major (an) Deg 7.0 deg
- Insert Thickness (S) mm 4.27
- Grade Type Carbide Uncoated
- Theoretical Cutting Edge Length (L) mm 13.3
- Insert Seat Size Code (SSC) XCEX13.
- Insert Hand (IH) Right
- Weight (kg) 0.005
- Insert Included Angle (epsr) Deg 80.0 deg
- Corner Radius (RE) mm 0.4
- Cutting Edge Count (CEDC) 2
- Grade HX
SKU: A0122836

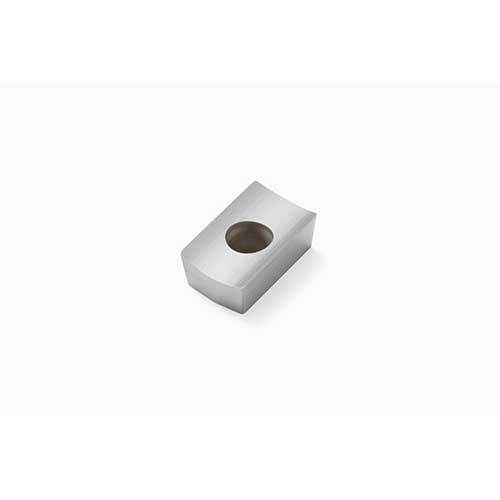

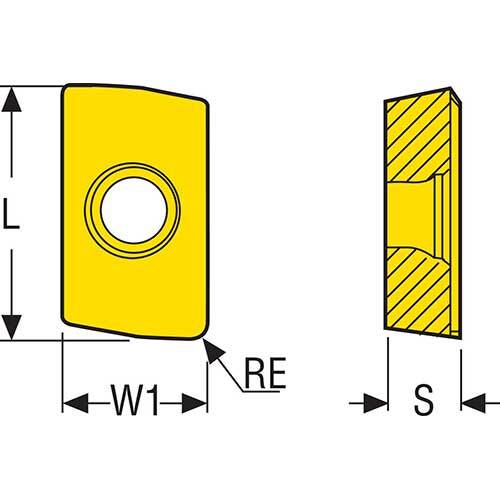

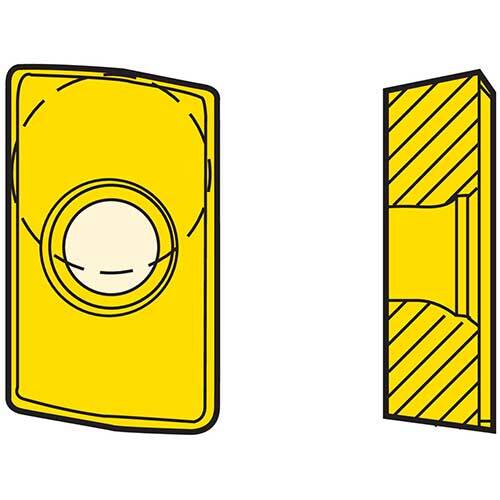

Seco Milling Insert 4.27 x 0.4 x 13.3mm HX Grade Right X Type - E06 XCEX13T304FR-E06,HX - Pack of 10
Milling Insert HX Grade X Type - E06
$475.72
