Specifications
- AIMS SKU A0122835
- Brand Seco
- Model Number 74003676
- Barcode Number 3676740001002
- Type Milling Insert
- Designation TPKR1603PDTR-ME10,T25M

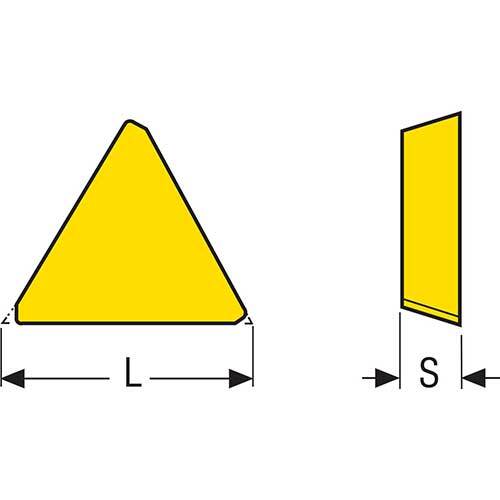

- Theoretical Cutting Edge Length (L) mm 12.7
- Insert Seat Size Code (SSC) TPKR16..
- Insert Hand (IH) Right
- Grade Type Carbide CVD
- Insert Included Angle (epsr) Deg 60.0 deg
- Corner Radius (RE) mm 0.6
- Inscribed Circle Diameter (IC) 9.53
- Weight (kg) 0.005
- Wiper Edge Length (bs) Mm 1.2
- Clearance Angle Major (an) Deg 11.0 deg
- Insert Thickness (S) mm 3.38
- Cutting Edge Count (CEDC) 3
- Grade T25M
SKU: A0122835
Seco Milling Insert 3.38 x 0.6 x 12.7mm T25M Grade Right R Type - ME10 TPKR1603PDTR-ME10,T25M - Pack of 10
Milling Insert T25M Grade R Type - ME10
$207.82
