Specifications
- AIMS SKU A0122834
- Brand Seco
- Model Number 74011894
- Barcode Number 11894740001009
- Type Milling Insert
- Designation SPKN1203EDTR-MD14,T25M

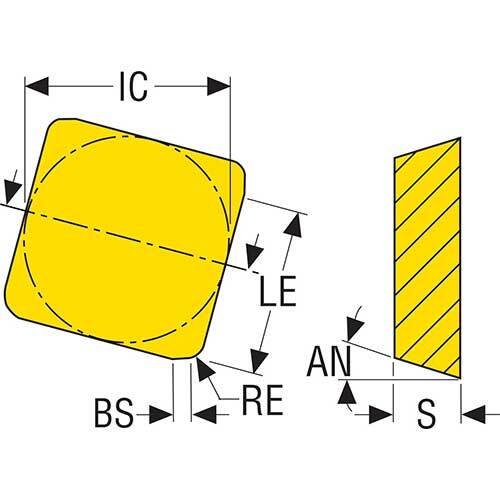

- Wiper Edge Length (bs) Mm 1.4
- Insert Seat Size Code (SSC) SPK...1203
- Insert Hand (IH) Right
- Grade Type Carbide CVD
- Wiper Edge Property 0
- Theoretical Cutting Edge Length (L) mm 12.7
- Corner Radius (RE) mm 1.75
- Inscribed Circle Diameter (IC) 12.7
- Weight (kg) 0.007
- Clearance Angle Major (an) Deg 11.0 deg
- Insert Thickness (S) mm 3.17
- Cutting Edge Count (CEDC) 4
- Grade T25M
SKU: A0122834

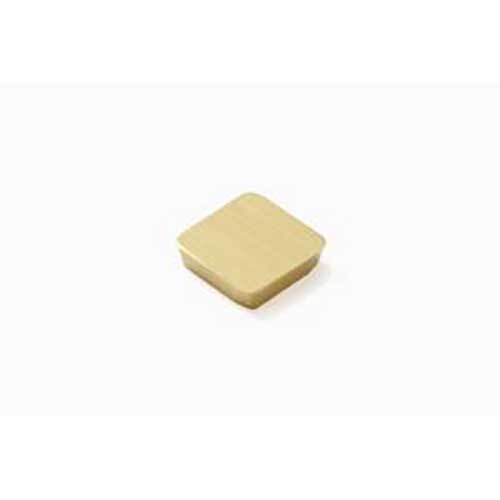

Seco Milling Insert 3.17 x 1.75 x 12.7mm T25M Grade Right N Type - MD14 SPKN1203EDTR-MD14,T25M - Pack of 10
Milling Insert T25M Grade N Type - MD14
$259.30
