Specifications
- AIMS SKU A0114721
- Brand Seco
- Model Number 02829674
- Barcode Number 29674028000103
- Net Weight (kg) 0.154
- Type Turning Toolholder
- Designation A08-SCLCR-3
- Tool Holder Type Steel

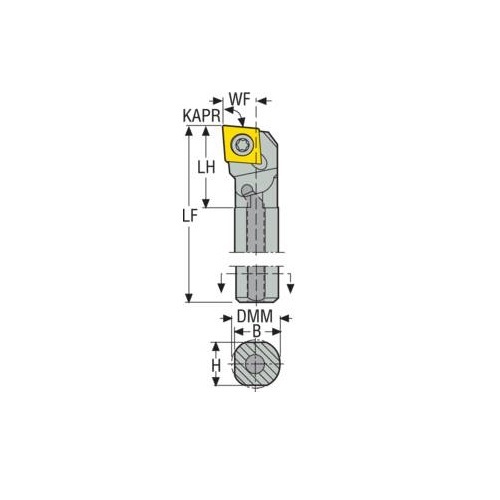

- Tool Cutting Edge Angle (KAPR) 95.0 deg
- Version (internal/external/both) Internal
- Rake Angle Orthogonal (gamo) 0.0 deg
- Insert Size Inscribed Circle Diameter (mm) 3
- Tool Cutting Edge Angle Code (KAPRC) L
- Shank Diameter (DMM) 12.7
- Height Of Tool Holder Shank (H) mm 10.8
- Connection Text Workpiece Side (ctws) CC09T3
- Direction Of Cutting (hand) Right
- Shank Type Cylindrical
- Functional Width (WF) mm 8
- Cutting Diameter Internal Minimum (DCINN) 16
- Insert Clamping System (ICS) Screw Lock
- Head Length (LH) mm 14
- Shank Width (b) mm 12.2
- Connection Text Machine Side (CTMS) 12.7
- Inclination Angle (LAMS) -11.0 deg
- Functional Length (LF) 203.2
SKU: A0114721

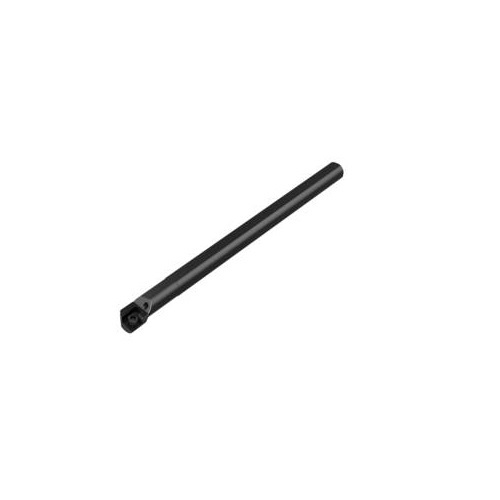

Seco Internal Turning Toolholder Steel Screw Lock 203.2 x 12.7 x 16mm Right 95° C Insert Shape A08-SCLCR-3
Turning Internal Toolholder (Steel - Screw Lock - L Type
$190.08
