Specifications
- AIMS SKU A0114716
- Brand Seco
- Model Number 02829689
- Barcode Number 29689028000107
- Net Weight (kg) 0.48
- Type Turning Toolholder
- Designation A12-SCLCL-3
- Tool Holder Type Steel

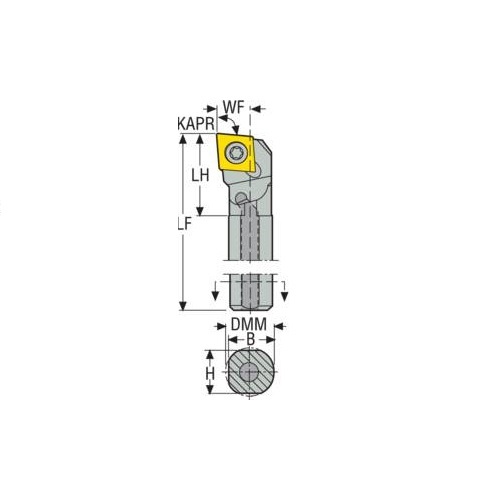

- Tool Cutting Edge Angle (KAPR) 95.0 deg
- Version (internal/external/both) Internal
- Rake Angle Orthogonal (gamo) 0.0 deg
- Insert Size Inscribed Circle Diameter (mm) 3
- Tool Cutting Edge Angle Code (KAPRC) L
- Shank Diameter (DMM) 19.05
- Height Of Tool Holder Shank (H) mm 16.5
- Connection Text Workpiece Side (ctws) CC09T3
- Direction Of Cutting (hand) Left
- Shank Type Cylindrical
- Functional Width (WF) mm 12.7
- Cutting Diameter Internal Minimum (DCINN) 25.4
- Insert Clamping System (ICS) Screw Lock
- Head Length (LH) mm 19.1
- Shank Width (b) mm 18.6
- Connection Text Machine Side (CTMS) 19.05
- Inclination Angle (LAMS) -6.4 deg
- Functional Length (LF) 254
SKU: A0114716

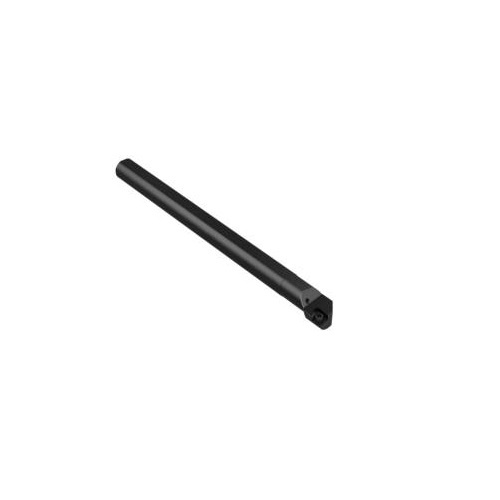

Seco Internal Turning Toolholder Steel Screw Lock 254 x 19.05 x 25.4mm Left 95° C Insert Shape A12-SCLCL-3
Turning Internal Toolholder (Steel - Screw Lock - L Type
$234.96
SAVE $58.74 (20%)
