Specifications
- AIMS SKU A0114694
- Brand Seco
- Model Number 02829695
- Barcode Number 29695028000108
- Net Weight (kg) 0.43
- Type Turning Toolholder
- Designation A12-STUCR-3
- Tool Holder Type Steel
- Tool Cutting Edge Angle (KAPR) 93.0 deg
- Version (internal/external/both) Internal
- Rake Angle Orthogonal (gamo) 0.0 deg
- Cutting Depth Max (CDX) mm 3.1
- Tool Cutting Edge Angle Code (KAPRC) U
- Shank Diameter (DMM) 19.05
- Height Of Tool Holder Shank (H) mm 18
- Connection Text Workpiece Side (ctws) TC16T3
- Direction Of Cutting (hand) Right
- Shank Type Cylindrical
- Functional Width (WF) mm 12.7
- Cutting Diameter Internal Minimum (DCINN) 25.4
- Insert Clamping System (ICS) Screw Lock
- Head Length (LH) mm 19.1
- Shank Width (b) mm 18.5
- Connection Text Machine Side (CTMS) 19.05
- Insert Size Inscribed Circle Diameter (mm) 3
- Inclination Angle (LAMS) -6.0 deg
- Functional Length (LF) 254
SKU: A0114694

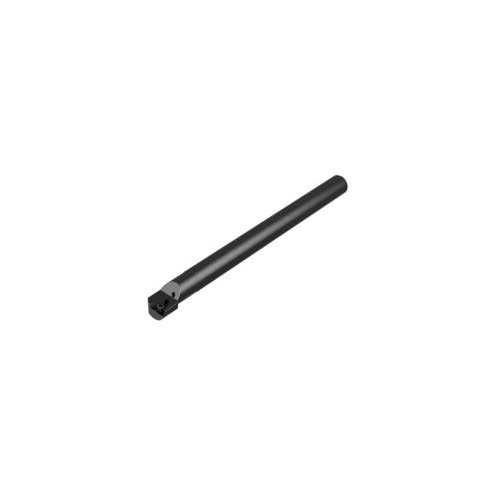

Seco Internal Turning Toolholder Steel Screw Lock 254 x 19.05 x 25.4mm Right 93° T Insert Shape A12-STUCR-3
Turning Internal Toolholder (Steel - Screw Lock - U Type
$234.96
SAVE $58.74 (20%)
