Description

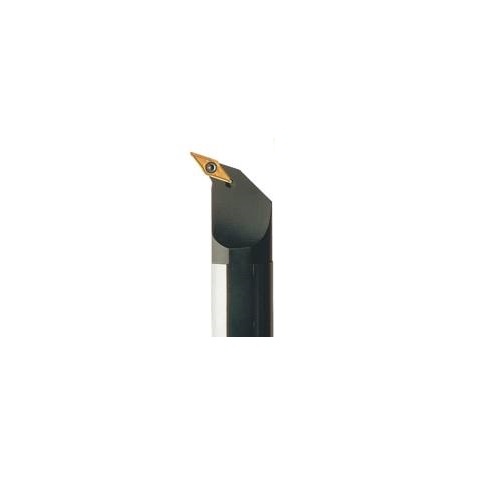

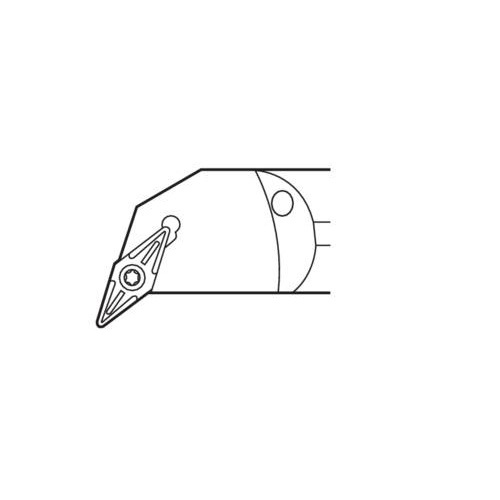

Seco Internal Turning Toolholder Steel Screw Lock 254 x 19.05 x 28.58mm Right 107.5° V Insert Shape A12-SVQBR-2

Turning Internal Toolholder (Steel - Screw Lock - Q Type - V Insert Shape)

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114688

Brand Seco

Model Number 00002730

Barcode Number 2730000000103

Net Weight (kg) 0.56

Type Turning Toolholder

Designation A12-SVQBR-2

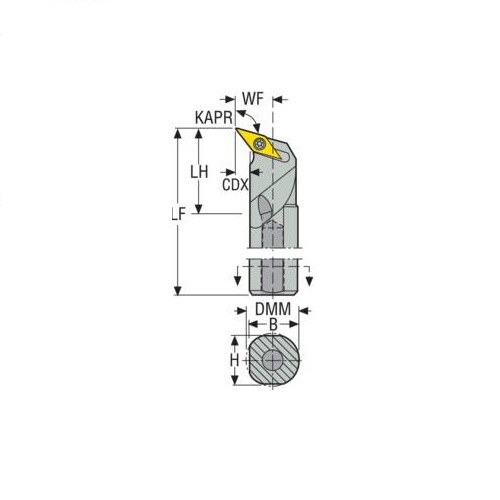

Height Of Tool Holder Shank (H) mm 18

Connection Text Workpiece Side (ctws) VB1102

Direction Of Cutting (hand) Right

Rake Angle Orthogonal (gamo) 0.0 deg

Insert Size Inscribed Circle Diameter (mm) 2

Functional Width (WF) mm 28.6

Cutting Diameter Internal Minimum (DCINN) 28.58

Insert Clamping System (ICS) Screw Lock

Head Length (LH) mm 36.3

Shank Width (b) mm 18.5

Connection Text Machine Side (CTMS) 19.05

Shank Type Cylindrical

Cutting Depth Radial Max (CDRX) mm 4.5

Inclination Angle (LAMS) -5.0 deg

Functional Length (LF) 254

Tool Holder Type Steel

Tool Cutting Edge Angle (KAPR) 107.5 deg

Version (internal/external/both) Internal

Rake Angle Axial (gamp) -5.0 deg

Cutting Depth Max (CDX) mm 4.5

Tool Cutting Edge Angle Code (KAPRC) Q

Shank Diameter (DMM) 19.05
