Description

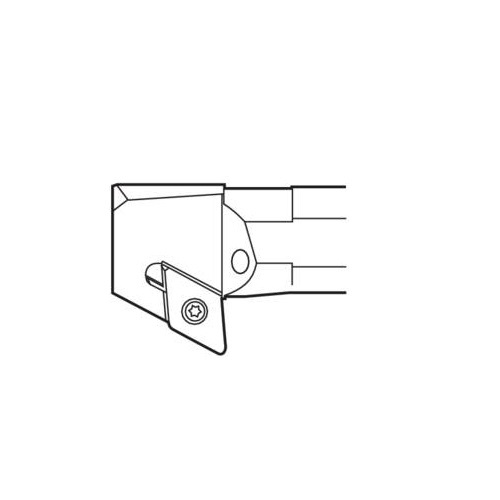

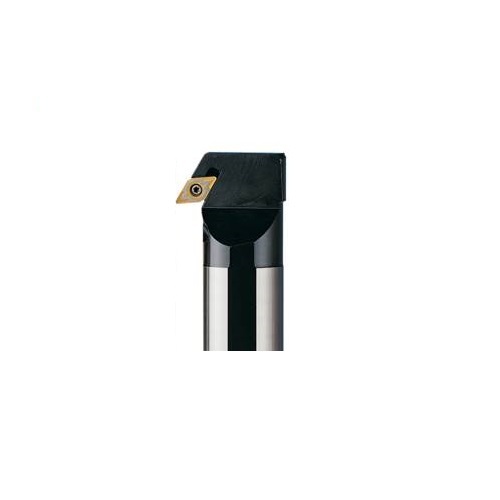

Seco Internal Turning Toolholder Steel Screw Lock 180 x 20 x 11mm Left 95° D Insert Shape A20Q-SDYNL11

Turning Internal Toolholder (Steel - Screw Lock - Y Type - D Insert Shape)

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114624

Brand Seco

Model Number 75079499

Barcode Number 79499750000109

Net Weight (kg) 0.4

Type Turning Toolholder

Designation A20Q-SDYNL11

Tool Holder Type Steel

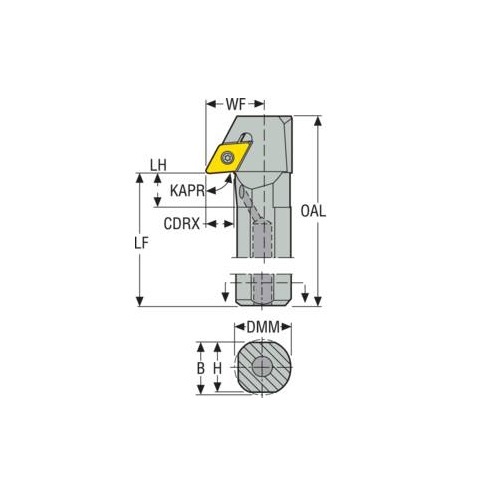

Head Length (LH) mm 15

Shank Width (b) mm 19

Connection Text Machine Side (CTMS) 20

Cutting Depth Radial Max (CDRX) mm 10

Cutting Edge Length (mm) 11

Cutting Diameter Internal Minimum (DCINN) 40

Shank Diameter (DMM) 20

Overall Length (OAL) mm 200

Tool Cutting Edge Angle (KAPR) 95.0 deg

Version (internal/external/both) Internal

Rake Angle Orthogonal (gamo) -5.0 deg

Cutting Depth Max (CDX) mm 10

Inclination Angle (LAMS) -14.0 deg

Tool Type Y Type

Insert Clamping System (ICS) Screw Lock

Height Of Tool Holder Shank (H) mm 18

Connection Text Workpiece Side (ctws) DN1104

Direction Of Cutting (hand) Left

Body Diameter Max (BDX) mm 20

Functional Width (WF) mm 20

Tool Cutting Edge Angle Code (KAPRC) Y

Functional Length (LF) 180
