Description

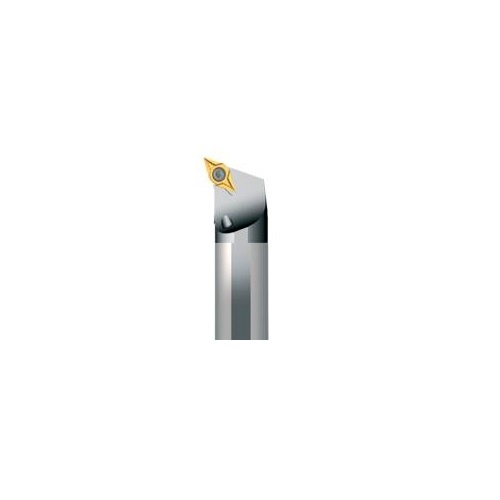

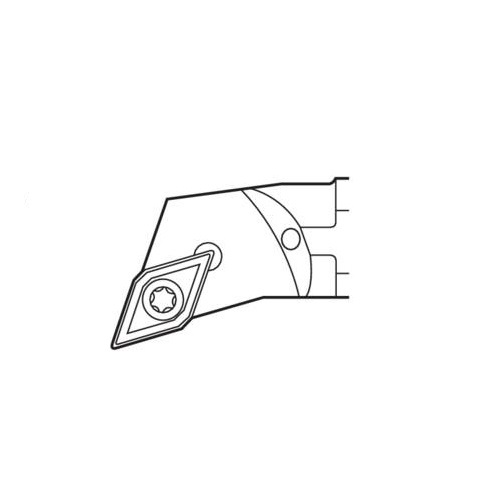

Seco Internal Turning Toolholder Steel Screw Lock 250 x 25 x 15mm Left 107.5° D Insert Shape A25S-SDQCL15

Turning Internal Toolholder (Steel - Screw Lock - Q Type - D Insert Shape - 7° ISCA)

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114596

Brand Seco

Model Number 00030965

Barcode Number 30965000000102

Net Weight (kg) 0.762

Type Turning Toolholder

Designation A25S-SDQCL15

Tool Holder Type Steel

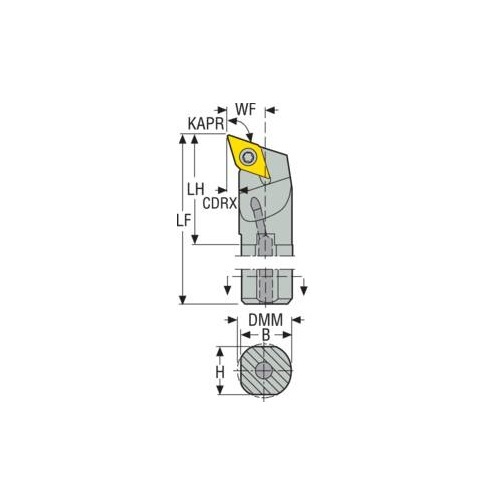

Tool Cutting Edge Angle (KAPR) 107.5 deg

Version (internal/external/both) Internal

Rake Angle Orthogonal (gamo) 0.0 deg

Cutting Depth Radial Max (CDRX) mm 4

Cutting Edge Length (mm) 15

Cutting Diameter Internal Minimum (DCINN) 32

Shank Diameter (DMM) 25

Height Of Tool Holder Shank (H) mm 23

Connection Text Workpiece Side (ctws) DC1504

Direction Of Cutting (hand) Left

Shank Type Cylindrical

Cutting Depth Max (CDX) mm 4

Inclination Angle (LAMS) -5.0 deg

Tool Type Q Type

Insert Clamping System (ICS) Screw Lock

Head Length (LH) mm 40

Shank Width (b) mm 24

Connection Text Machine Side (CTMS) 25

Functional Width (WF) mm 17

Tool Cutting Edge Angle Code (KAPRC) Q

Functional Length (LF) 250
