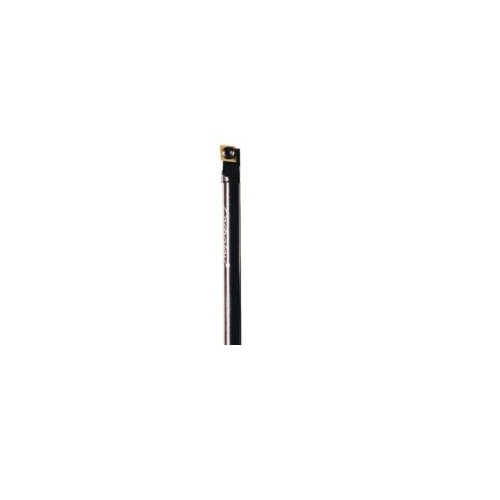

Seco Internal Turning Toolholder Solid Steel Screw Lock 76.2 x 6.35 x 6.73mm Left 95° C Insert Shape S04-SCLDL-1.2

Turning Internal Toolholder (Solid Steel - Screw Lock - L Type - C Insert Shape - 1.2mm Cutting Edge Length)

  • Solid Steel.
  • T insert shape.
  • 15° ISCA (Insert Side Clearance Angles).
  • Screw Lock.
  • C tool type, offset shank with negative 5° (95°) end or side cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0114655
  • Brand Seco
  • Model Number 00057647
  • Barcode Number 57647000000104
  • Net Weight (kg) 0.04
  • Type Turning Toolholder
  • Designation S04-SCLDL-1.2
  • Tool Holder Type Solid Steel
  • Connection Text Workpiece Side (ctws) CD04T0
  • Direction Of Cutting (hand) Left

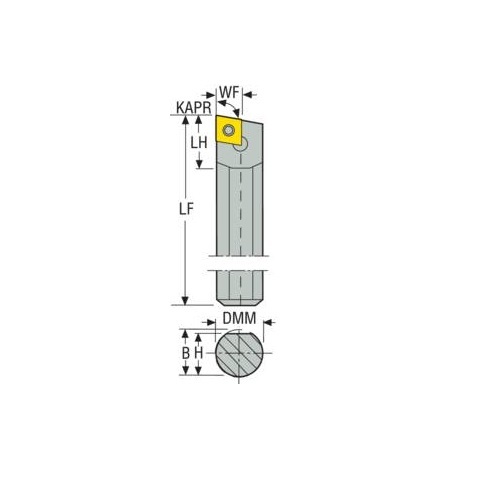

  • Rake Angle Orthogonal (gamo) 0.0 deg
  • Functional Width (WF) mm 3.6
  • Cutting Diameter Internal Minimum (DCINN) 6.73
  • Shank Diameter (DMM) 6.35
  • Height Of Tool Holder Shank (H) mm 6
  • Shank Width (b) mm 6.4
  • Connection Text Machine Side (CTMS) 6.35
  • Shank Type Cylindrical
  • Inclination Angle (LAMS) -12.0 deg
  • Tool Type L Type

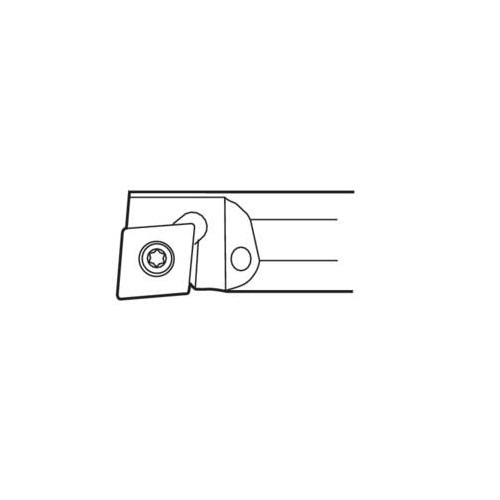

  • Insert Clamping System (ICS) Screw Lock
  • Tool Cutting Edge Angle (KAPR) 95.0 deg
  • Version (internal/external/both) Internal
  • Rake Angle Axial (gamp) -12.0 deg
  • Insert Size Inscribed Circle Diameter (mm) 1.2
  • Tool Cutting Edge Angle Code (KAPRC) L
  • Functional Length (LF) 76.2
SKU: A0114655

Seco Internal Turning Toolholder Solid Steel Screw Lock 76.2 x 6.35 x 6.73mm Left 95° C Insert Shape S04-SCLDL-1.2

Turning Internal Toolholder (Solid Steel - Screw Lock -

$190.08
RRP $237.60
SAVE $47.52 (20%)
