Seco General Turning Insert 0.8 x 3.18 x 12.7mm CP200 Grade Neutral (SPGN) SPGN120308,CP200 Pack of 10

Turning Insert CP200 Grade (SPGN)

  • CP200 grade.
  • S, Insert Shape Code (SC).
  • 12, Insert Seat Size Code (SSC).

About CP200 Grade

  • Carbide PVD.
  • Hard micrograin grade principally intended for finishing in superalloys and titanium.
  • It also works well in stainless steel.
  • (Ti, Al) N + TiN

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chipbreakers.
  • Supporting inserts of different shapes, sizes, and thicknesses.
  • We developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0122011
  • Brand Seco
  • Model Number 00064907
  • Barcode Number 64907000001007
  • Type Turning Insert
  • Designation SPGN120308,CP200

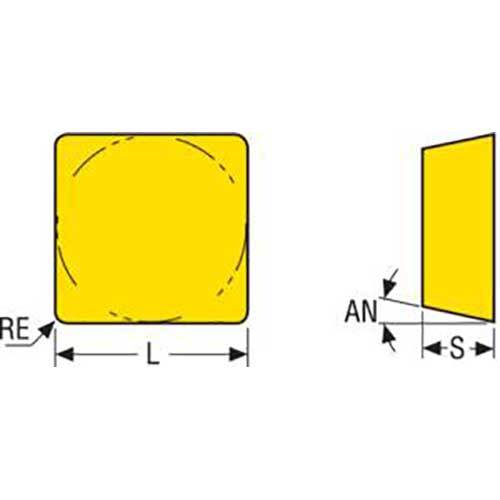

  • Insert Included Angle (epsr) Deg 90.0 deg
  • Insert Shape Code (SC) S
  • Insert Thickness (S) mm 3.18
  • Cutting Edge Count (CEDC) 4
  • Clearance Angle Major (an) Deg 11.0 deg
  • Insert Seat Size Code (SSC) 12
  • Cutting Edge Effective Length (LE) mm 11.2
  • Grade Type Carbide PVD
  • Theoretical Cutting Edge Length (L) mm 12.7
  • Inscribed Circle Diameter (IC) mm 12.7
  • Corner Radius (RE) mm 0.8
  • Insert Hand (IH) Neutral
  • Grade CP200
SKU: A0122011

Seco General Turning Insert 0.8 x 3.18 x 12.7mm CP200 Grade Neutral (SPGN) SPGN120308,CP200 Pack of 10

Turning Insert CP200 Grade (SPGN)

$209.74
