Description

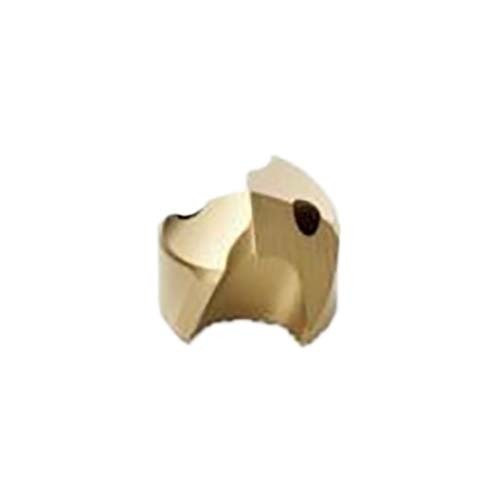

Seco Crownloc™ Crown P - Geometry 10 x 8.1 x 0.1mm Pack of 2 SD100-10.00-P

Crownloc™ Crown P - Geometry (Steel)

  • P geometry, universal geometry, first choice for drilling in steel.
  • The P geometry is recommended for drilling in steel and replaces the need for regrindable tools such as solid carbide drills and brazed drills.

About Crownloc™:

  • Crownloc™ is a range of exchangeable tip drills designed to offer high quality holes at a lower cost.
  • Matching the quality of high precision drills, Crownloc uses replaceable crowns to eliminate the need for and cost of regrinding.
  • This guarantees consistently higher performance and tool life while also reducing the number of drills required in inventory.
  • Crownloc features a unique clamping design with a precision-ground interface of interlocking V-grooves to allow high cutting speeds and ensure rigidity and exact repeatability of positioning of each crown.
  • Long land margins provide excellent guidance to ensure high hole quality and self-centering geometry eliminates the need for center drilling operations.
  • Double coolant holes through the crown permit a high volume of coolant to reach the cutting edges.
  • The result is safer chip evacuation and longer tool life.
  • Crownloc is available in a large range of optimized tip geometries for different applications and workpiece materials.
  • It reduces stress in the machined surface and minimizes burr creation at the hole’s exit by minimizing cutting forces, high heat generation and workpiece hardening.
  • Diameter range 10 - 25.99 mm (.393 - 1.023 inch).

Specifications

  • AIMS SKU A0113559
  • Brand Seco
  • Model Number 02469022
  • Barcode Number 69022024000203
  • Net Weight (kg) 0.003
  • Designation SD100-10.00-P
  • Corner Chamfer Angle (KCH) degrees 35.0°
  • Corner Chamfer Width (CHW) mm 0.1

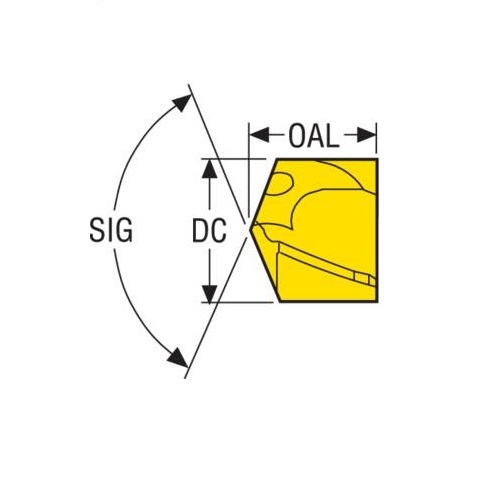

  • Point Angle (SIG) degrees 140.0°
  • Cutting Diameter (DC) X Overall Length (OAL) mm 10 x 8.1
  • Type Crownloc™ Crown
  • Material Steel
  • Tip Geometry P-Geometry
  • Grade Type Carbide PVD
SKU: A0113559

Seco Crownloc™ Crown P - Geometry 10 x 8.1 x 0.1mm SD100-10.00-P - Pack of 2

Crownloc™ Crown P - Geometry (Steel)

$308.88
