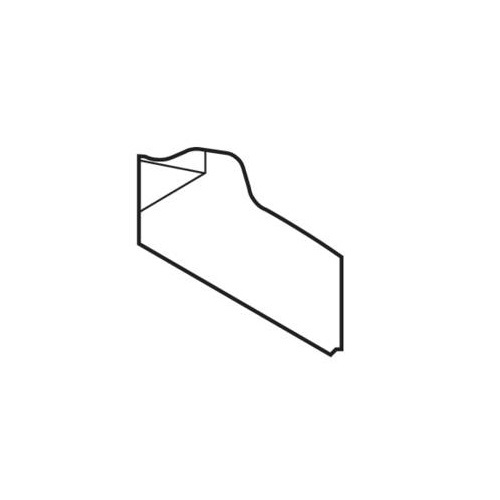

Turning 150.10 Parting Off Neutral Insert (14 Chipbreaker)

  • Inserts in neutral version N are first choice since they normally achieve increased tool life.
  • Inserts in neutral version N better chip control, high surface quality and allow higher cutting data compared to the handed (R-/L-) version.
  • Carbide PVD and carbide CVD

14 Chipbreaker

  • First choice for stainless steel.
  • First choice for steel at medium-high feed rates.
  • 15° positive cutting rake angle with sharp edge.
  • Excellent chipbreaking.

All About Seco 150.10 Parting Off Insert:

  • Optimized for parting-off applications, the Seco 150.10 consists of a high-speed steel blade that holds the insert and a holder that retains the blade.
  • This setup provides maximum stability, while the hot strength of the high-speed steel ensures the insert will be securely retained especially when the blade is hot.
  • 150.10 is also available in combination with Jetstream Tooling® Duo.
  • A high-pressure cooling system that provides directed coolant to the cutting edge by two streams to rake and clearance surfaces.

Specifications

  • AIMS SKU A0113039
  • Brand Seco
  • Model Number 00033115
  • Barcode Number 33115000001006
  • Net Weight (kg) 0.001
  • Designation 150.10-1.4N-14 CP600
  • Insert Seat Size Code (SSC) 1.4
  • Cutting Edge Angle Major Left Hand (PSIRL) 0.0 deg
  • Corner Radius (RE) mm 0.15
  • Insert Length (INSL) mm 9
  • Cutting Edge Angle Major Right Hand (PSIRR) 0.0 deg
  • Cutting Width (mm) 1.4
  • Type Parting Off Insert
  • Insert Hand (IH) Neutral
  • Grade Type Carbide PVD
SKU: A0113039

Seco Parting Off Neutral Insert CP600 1.4mm 14 Chipbreaker 150.10-1.4N-14,CP600 - Pack of 10

Turning 150.10 Parting Off Neutral Insert

$244.06
