Specifications
- AIMS SKU A0122839
- Brand Seco
- Model Number 02690464
- Barcode Number 90464026000100
- Type Turbo 09 Milling Cutter
- Designation R217.69-2525.0-09-3AN
- Rake Angle Radial (gamf) Deg -8.0 deg
- Depth Of Cut Max In Feed Direction Side (APMXS) mm 8.0 mm
- Shank Diameter (DMM) mm 25
- Cutting Diameter (DC) mm 25
- Helical Interpolation Hole Diameter Max (CMAX) 48.5
- Rotational Speed Maximum (RPMX) Rpm 26000 rpm
- Rake Angle Axial (gamp) Deg 8.0 deg
- Coolant Supply Property (CSP) 1
- Peripheral Effective Cutting Edge Count (ZEFP) 3
- Shank Length (LS) mm 130
- Shank Type Cylindrical
- Tool Cutting Edge Angle In Feed Direction End deg 90.0 deg
- Ramping Angle Maximum (RMPX) deg 2.5 deg
- Rake Angle Orthogonal (gamo) Deg -8.0 deg
- Tool Cutting Edge Angle In Feed Direction Side 90.0 deg
- Overall Length (OAL) mm 170
- Usable Length Maximum (LUX) mm 40
- Weight (kg) 0.555
- Helical Interpolation Hole Diameter Min (CMIN) 39
- Depth of Cut Max In Feed Direction End (APMXE) 5.0 mm
- Protruding Length (LPR) mm 114
SKU: A0122839

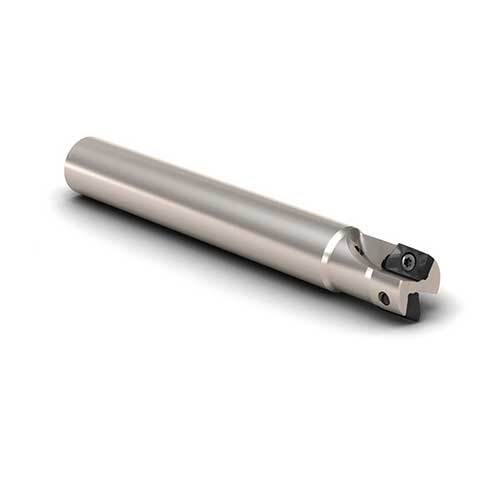

Seco 25 x 25mm Turbo 09 Square Shoulder Milling Cutter 3 Teeth - Cylindrical (Shank) R217.69-2525.0-09-3AN
Turbo 09 Milling Cutter (Shank - Cylindrical)
$562.32
SAVE $140.58 (20%)
