Description

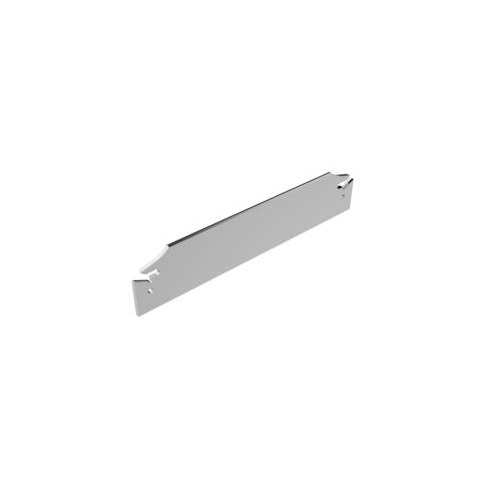

Parting Off 150.10A-20/25 HSS Blade /strong>

  • Optimized for parting-off applications, the Seco 150.10 consists of a high-speed steel blade that holds the insert and a holder that retains the blade.
  • This setup provides maximum stability, while the hot strength of the high-speed steel ensures the insert will be securely retained especially when the blade is hot.
  • 150.10 is also available in combination with Jetstream Tooling® Duo, a high-pressure cooling system that provides directed coolant to the cutting edge by two streams to rake and clearance surfaces.

Specifications

  • AIMS SKU A0113013
  • Brand Seco
  • Model Number 02578589
  • Barcode Number 78589025000109
  • Net Weight (kg) 0.084
  • Designation 150.10A-25-3
  • Connection Text Workpiece Side (ctws) 150.10-3
  • Overall Width X Length (mm) 2.4 x 150
  • Cutting Depth Maximum (cdx) mm 60
  • Connection Text Machine Side (ctms) mm Blade-25
  • Work Piece Parting Diameter Maximum (CUTDIA) mm 120
  • Cutting Width (mm) 3
  • Functional Height (HF) mm 25
  • Tool Cutting Edge Angle (KAPR) 90.0 deg
  • Type Parting Off Blade
  • Shank Type Blade
  • Direction Of Cutting (hand) Neutral
  • Version (internal/external/both) External

Video

SKU: A0113013

Seco 2.4 x 150mm Parting Off 150.10A-20/25 HSS Blade 150.10A-25-3

Parting Off 150.10A-20/25 HSS Blade

$202.59
RRP $243.10
SAVE $40.51 (17%)
