Specifications
- AIMS SKU A0150659
- Brand Seagull
- Model Number VA-013V

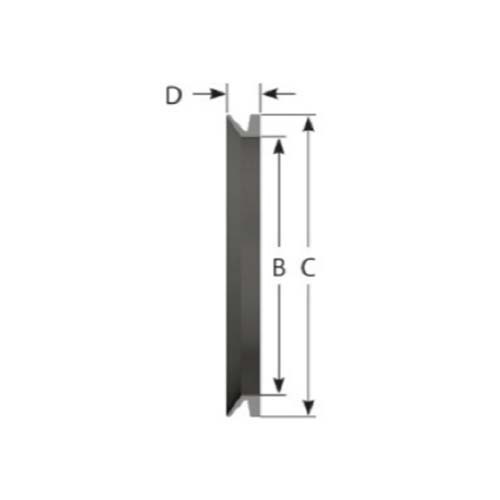

- Inside Diameter 11.7
- Outside Diameter 17.5
- Height 5.5
- Durometer 60
- Shaft Diameter 12.5-13.5

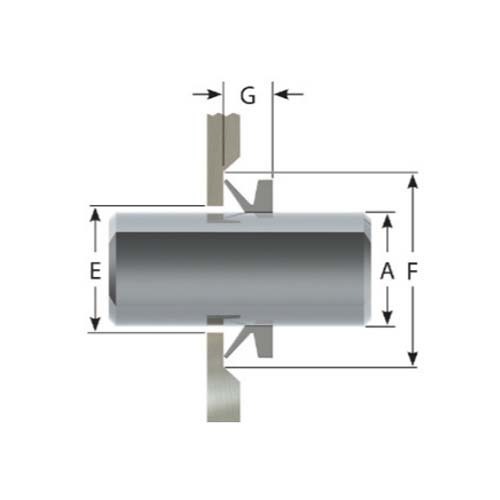

- Inside Diameter Housing Dimension E A + 2.00
- Outside Diamter Housing Dimension F A + 9.00
- Width Housing Dimension G 4.50 ± 0.60
- Type V-Ring Seal
- System of Measurement Metric
- Material Viton
SKU: A0150659

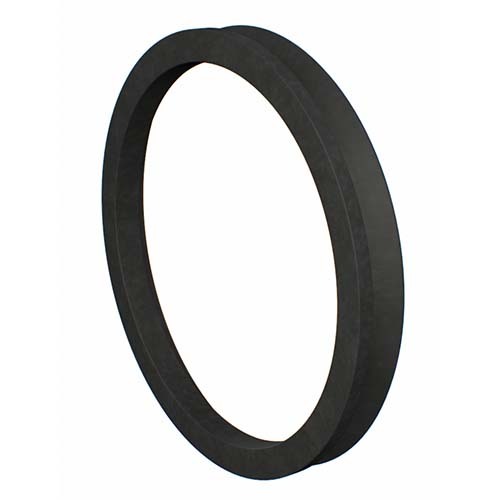

Seagull V-Ring Seal Viton 60 VA-013V Viton 60 Square Back 11.7 x 17.5 x 5.5mm
Seagull V-Ring Seal VA Series Straight Back Viton 60
$6.52
