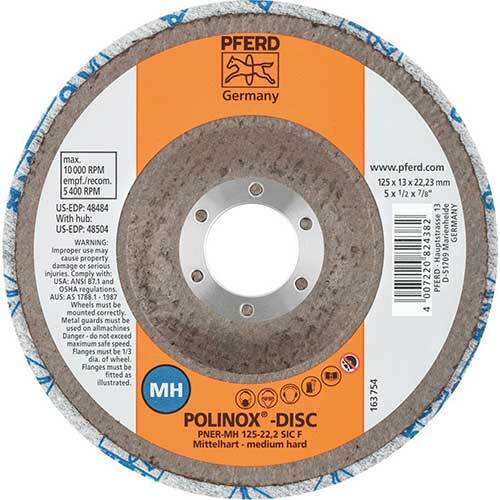

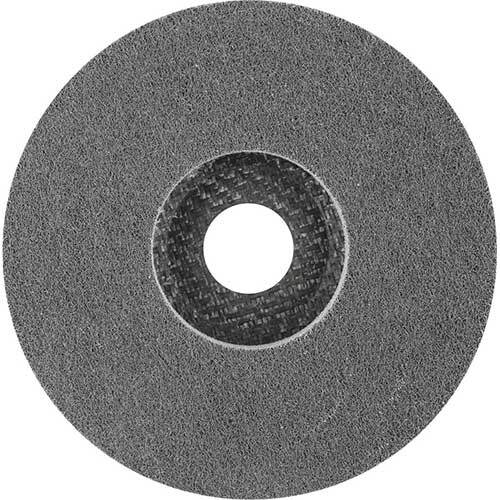

Pferd Polinox PNER Unitized/Convolute Grinding Wheel

• POLINOX Wheels Unitized Disc
• POLINOX unitized discs are used for facedown grinding on speed-adjustable angle grinders. The compressed fleece is bonded to a glass woven base. The PNER discs are particularly suitable for working larger surfaces on stainless steel (INOX) components.
• Abrasive: Silicon carbide SiC

• When working on materials with poor heat conductivity, e.g. titanium and stainless steel, significantly reduce the cutting speed
• Flexible shafts, electric and air-powered straight grinders as well as angle grinders and fillet weld grinders can be used as tool drives
• Designed for use on straight grinders and flexible shaft drives. Particularly suitable for work on small surfaces of stainless steel (INOX) and titanium alloy components.
• Unmounted grinding wheels with diameter 150 mm can also be used on grinding blocks, for reworking surgical instruments for example.
• POLINOX unitized discs achieve their best performance at a recommended cutting speed of 35 m/s

• For safety reasons, it is imperative to remain within the stated maximum permitted rotational speed at all times

Materials that can be worked

• Aluminium
• Cobalt-based alloys
• Other non-ferrous metals
• High-temperature-resistant materials
• Nickel-based alloys (e. g. Inconell and Hasteloy)
• Bronze
• Hard non-ferrous metal
• Titanium
• Titanium alloys
• Copper
• Soft non-ferrous metal
• Brass
• Zinc
• Stainless steel (INOX)
• Thermoplastics
• Fibre-reinforced duroplastics (GRP, CRP)
• Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)
• Steel materials with a hardness over 54 HRC
• Steel, cast steel
• Steels up to 1,200 N/mmŒ_ (< 38 HRC)
• Cast steel

Applications

• Roughening
• Deburring
• Surface work
• Cleaning
• Structuring (matt finishing, brush matting and satin finishing)
• Fine grinding in multiple steps

Drive types

• Angle grinder
• Cordless angle grinder
