Description

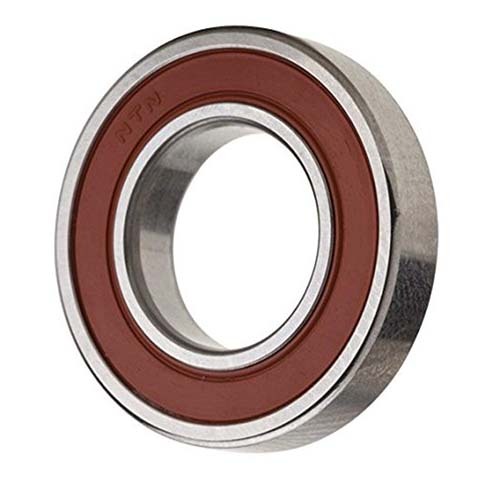

Deep Groove Ball Bearing Rubber Seal

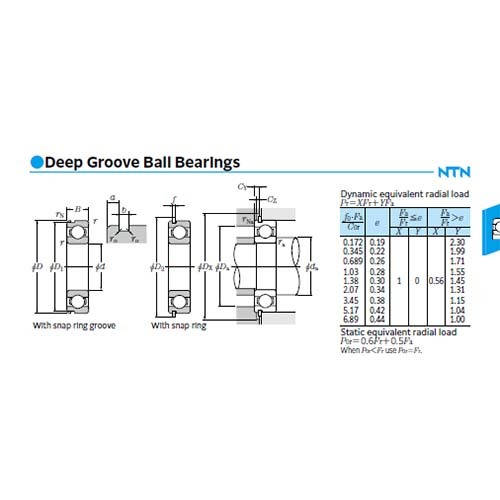

About NTN Deep Groove Ball Bearing

Deep groove ball bearings are very widely used.
A deep groove is formed on the inner and outer ring of the bearing enabling the bearing to sustain radial and axial loads in either direction as well as the complex loads which result from the combination of these forces.
Deep groove ball bearings are suitable for high-speed applications.
When two or more deep groove ball bearings are used in combination and mounted adjacent to each other a duplex set (D2) should be used.
Duplex bearings (D2) utilize controlled tolerances to more evenly distribute the loading between the individual bearing rows which improve the overall performance of the assembly.

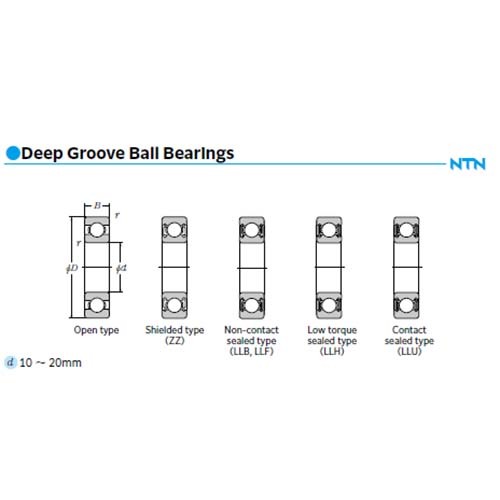

In addition, to unsealed and unlubricated "open" bearings, NTN provides deep groove ball bearings that are pre-lubricated with grease and enclosed by seals or shields.
"Lubrication" for a list of some of the greases which can be used.

Specifications

AIMS SKU A0153937

Brand NTN

Model Number 6802LLU/NTN

Bore Diameter x Outer Diameter x Width (mm) 15 x 24 x 5

Bore Diameter d (mm) 15

da Min. 17

da Max. 22

Width B (mm) 5

rs min1 0.3

Basic Load Rating Dynamic Cr Kn 2.3

Basic Load Rating Static C0r Kn 1.26

Fatigue Factor Load Limit Cu Kn 0.091

F0 15.8

Allowable Speed 17000

Da Max.4 17.5

ras Max. 0.3

Outer Diameter D (mm) 24
