Description

Tapered Roller Bearings

  • Tapered roller bearings are roller bearings with conical rollers.
  • These bearings are designed to support heavy radial loads and heavy thrust loads in one direction.
  • Tapered roller bearings are generally separable; for example, the cone, consisting of the inner ring with roller assembly, can be mounted separately from the cup (outer ring).
  • Single Row Imperial Dimensions Tapered Roller Bearing designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.

Specifications

  • AIMS SKU A0104964
  • Brand NACHI
  • Model Number 32312J/NACHI

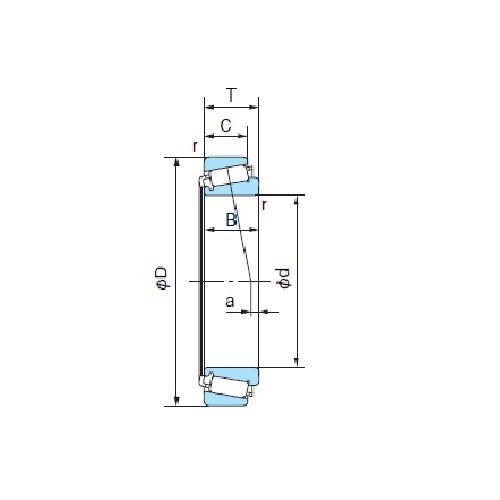

  • Bore Diameter x Outer Diameter x Width (mm) 60 x 180 x 48.5
  • Basic Dynamic Load Rating (n) 221000
  • Basic Static Load (N) 275000
  • Limiting Speed (rpm) Grease Lubrication 3100
  • Limiting Speed (rpm) Oil Lubrication 4200
  • Abutment And Fillet Dimension Da (min) Mm 74
  • Type Tapered Roller Bearings
  • System of Measurement Metric
  • Series 30203-32311
SKU: A0104964

NACHI 32312J Tapered Roller Bearings 32300 Series 60 x 180 x 48.5mm

Tapered Roller Bearings Metric 32300 Series

$140.04
